Omniflux Air Inlet

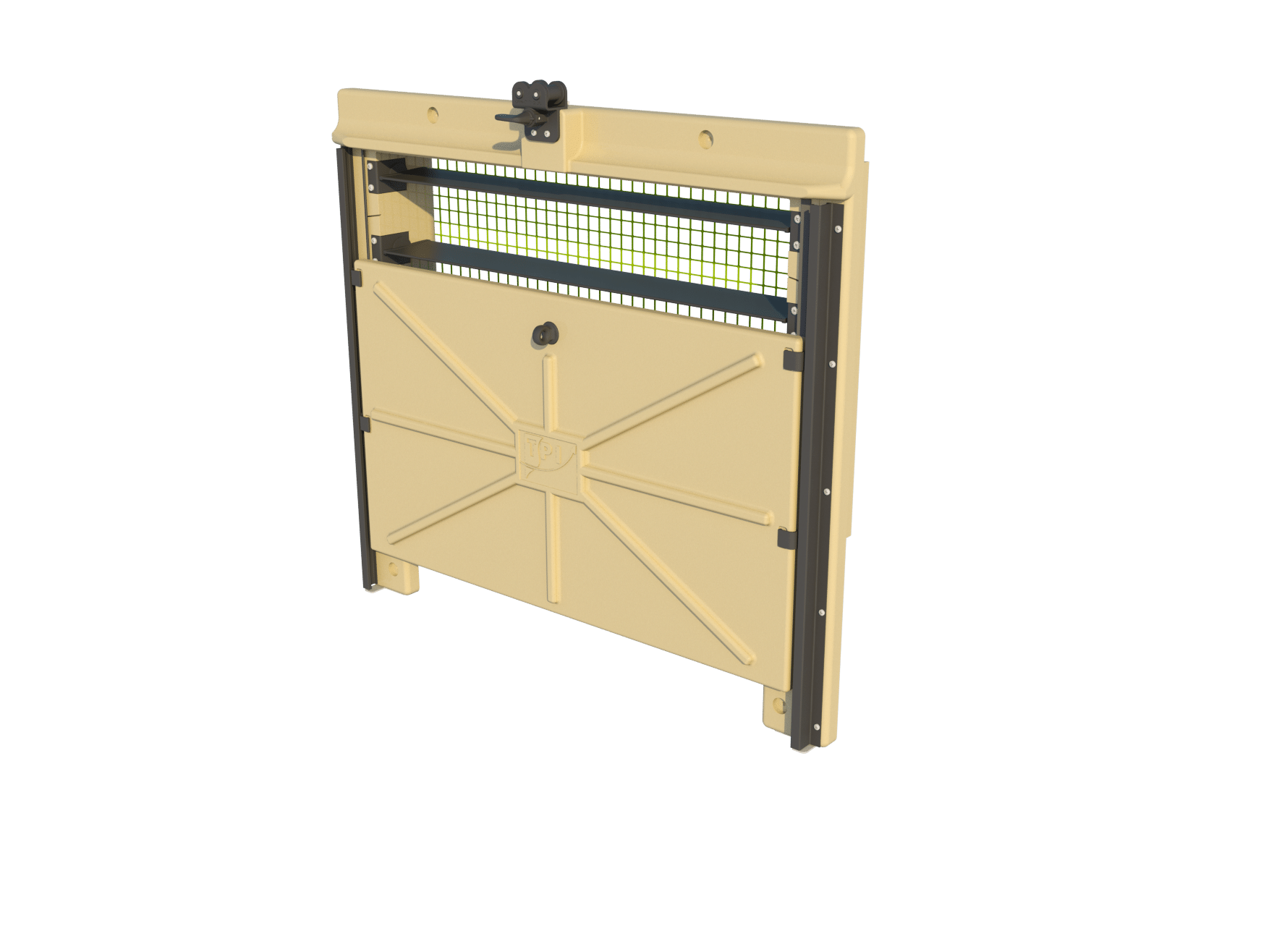

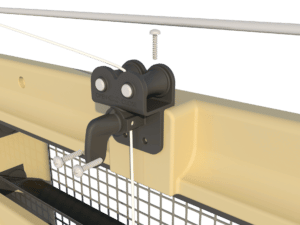

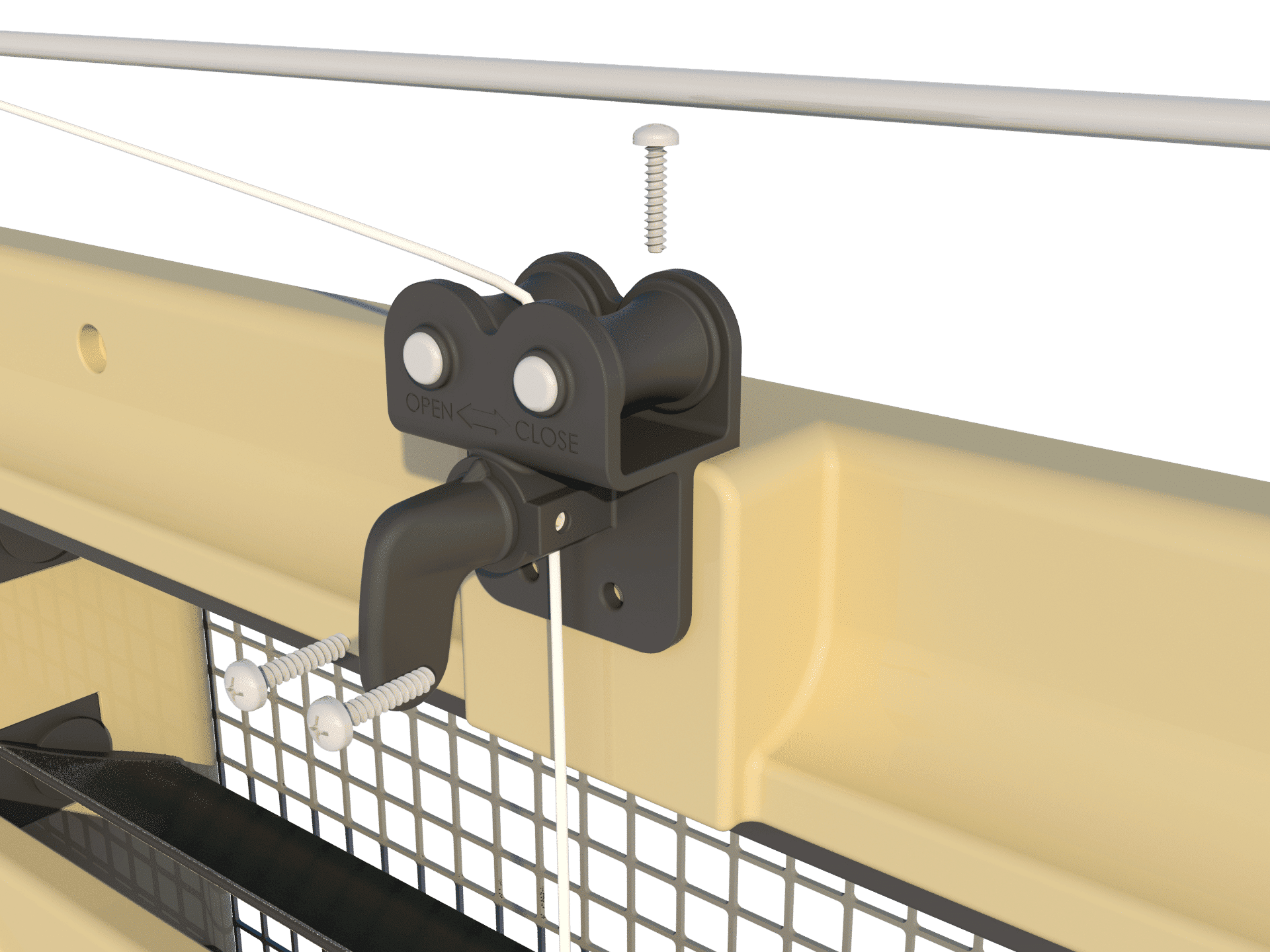

This air inlet is developed for use in very wide houses or houses with obstacles. Due to the adjustable louvres the air flow can be directed in any desired direction independent of the required capacity. With unique sliders and guide rails we make sure the profiled sliding plate of the inlet never gets stuck. Two quick-release clamps at the bottom of the guide rails allow a quick removal of the plate for cleaning purposes. The pulley unit created for this inlet has an internal cord lock to lock the inlets when needed.
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa | Setting Louvres |
|---|---|---|---|---|
Omniflux | 3200 | 4450 | 6400 | Horizontally |
Omniflux | 2250 | 3200 | 4450 | 30°, 1 Direction |
Omniflux | 2150 | 3000 | 4350 | 30°, 2 Directions |
Product information:
Run | 42 cm / 16.5 Inch |
Force | 4.5 kg / 44.1 Newton |
Number / pallet | 22 (1.20 x 1.00 x 2.40 m) |
Weight / per inlet | 5.17 kg / 11.37 Lbs |
Volume / per box | 11 |
