84-P-C Ceiling Inlet

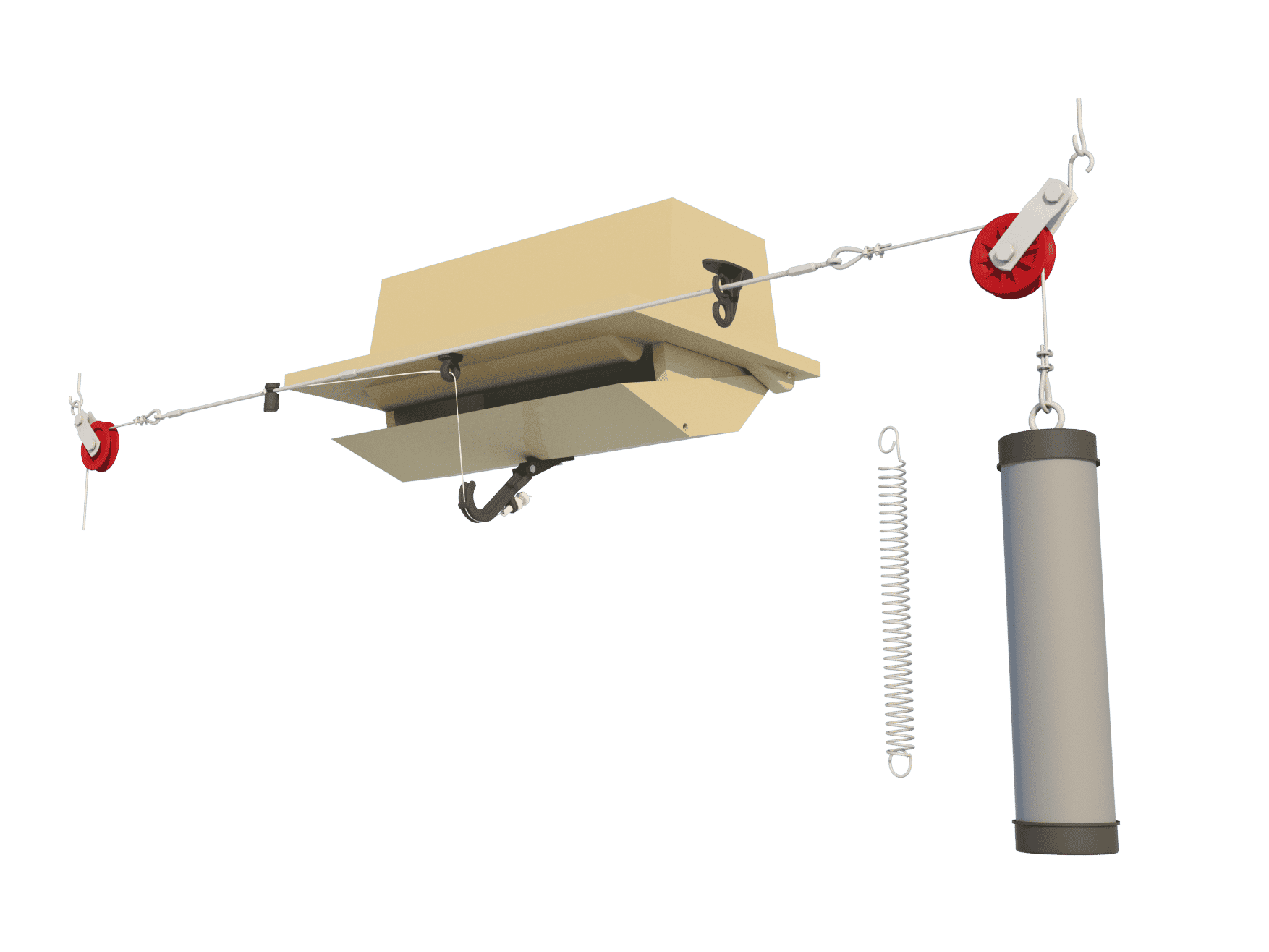

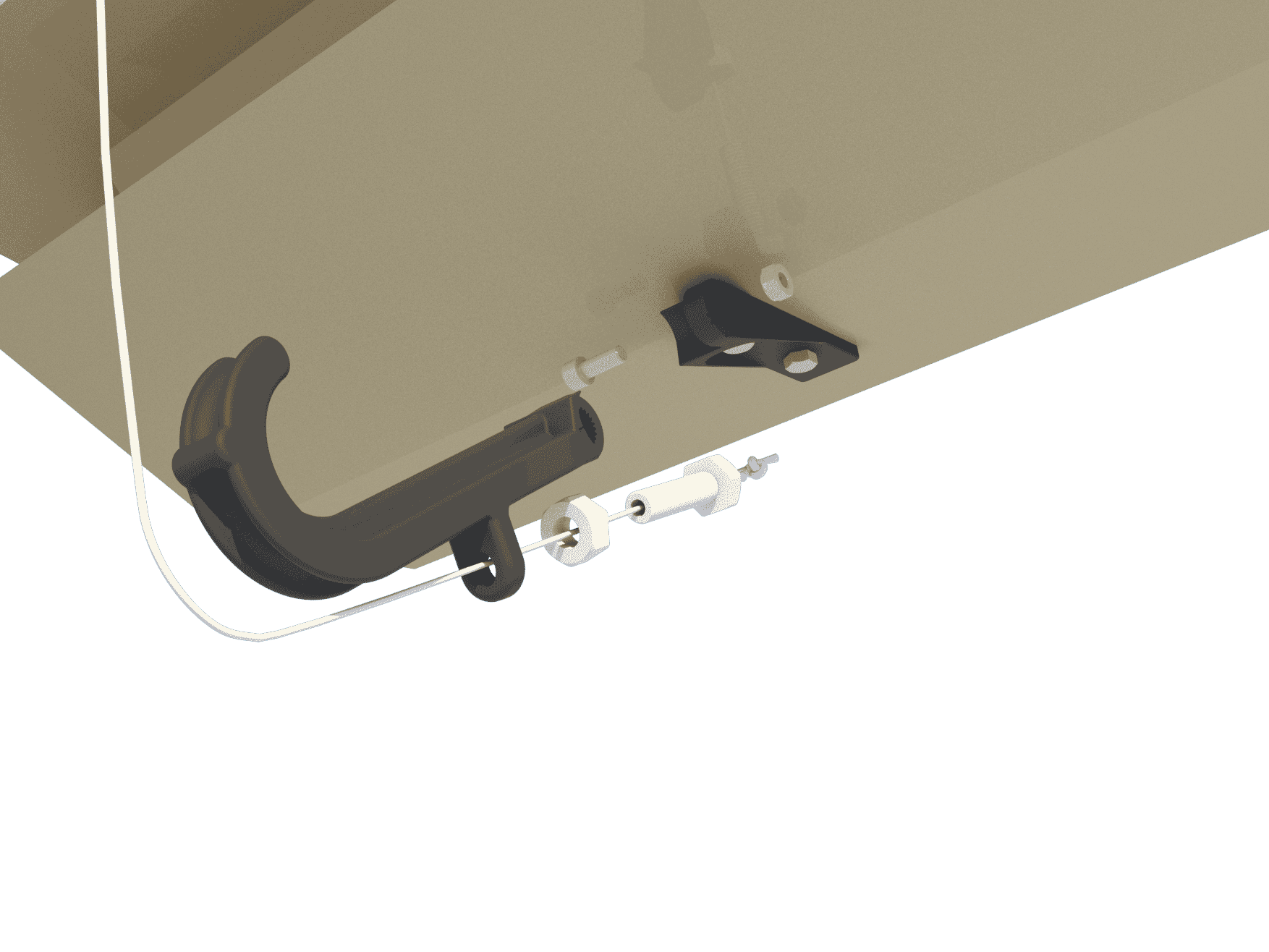

These inlets are specially designed for installation in ceilings. The inlet is used to bring air from the attic into the house. Working with ceiling inlets, in turn, helps to preheat the temperature of incoming air. The inlet is controlled by means of a central plastic arm.



Capacity in m3/hour at a static pressure of:



Model

10Pa

20Pa

40Pa

84-P-C

760

1070

1520

Product information:



Run

18 cm / 7.1 Inch

Force

1 kg / 9.8 Newton

Number / pallet

27(1.20 x 0.80 x 2.40 m)

Weight / per inlet

2 kg / 4.4 Lbs

Volume / per box

10
