6000-VFR-4 Tunnel Unit

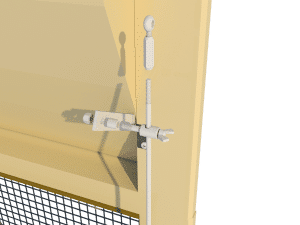

This tunnel unit consists of four single 6000-VFR-C inlets. This version is equipped with a straight inner flap that directs the air upwards with minimal ventilation. After an opening of more than 35%, the air will also flow under the inner flap. This unit is controlled by two arms per valve, which in turn are connected to the other inner valves.



Capacity in m3/hour at a static pressure of:



Model

10Pa

20Pa

40Pa

6000-4 Series

23200

35000

46400

Product information:



Run

17 cm / 6.7 Inch

Force

52 kg / 510 Newton

Number / pallet

5 (1.65 x 0.95 x 2.40 m)

Weight / per inlet

42.52 kg / 93.54 Lbs

Volume / per box

1
