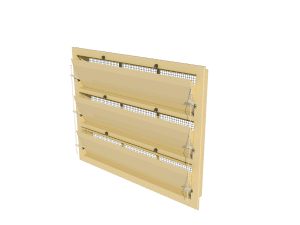

6000-VFR-3 Tunnel Unit

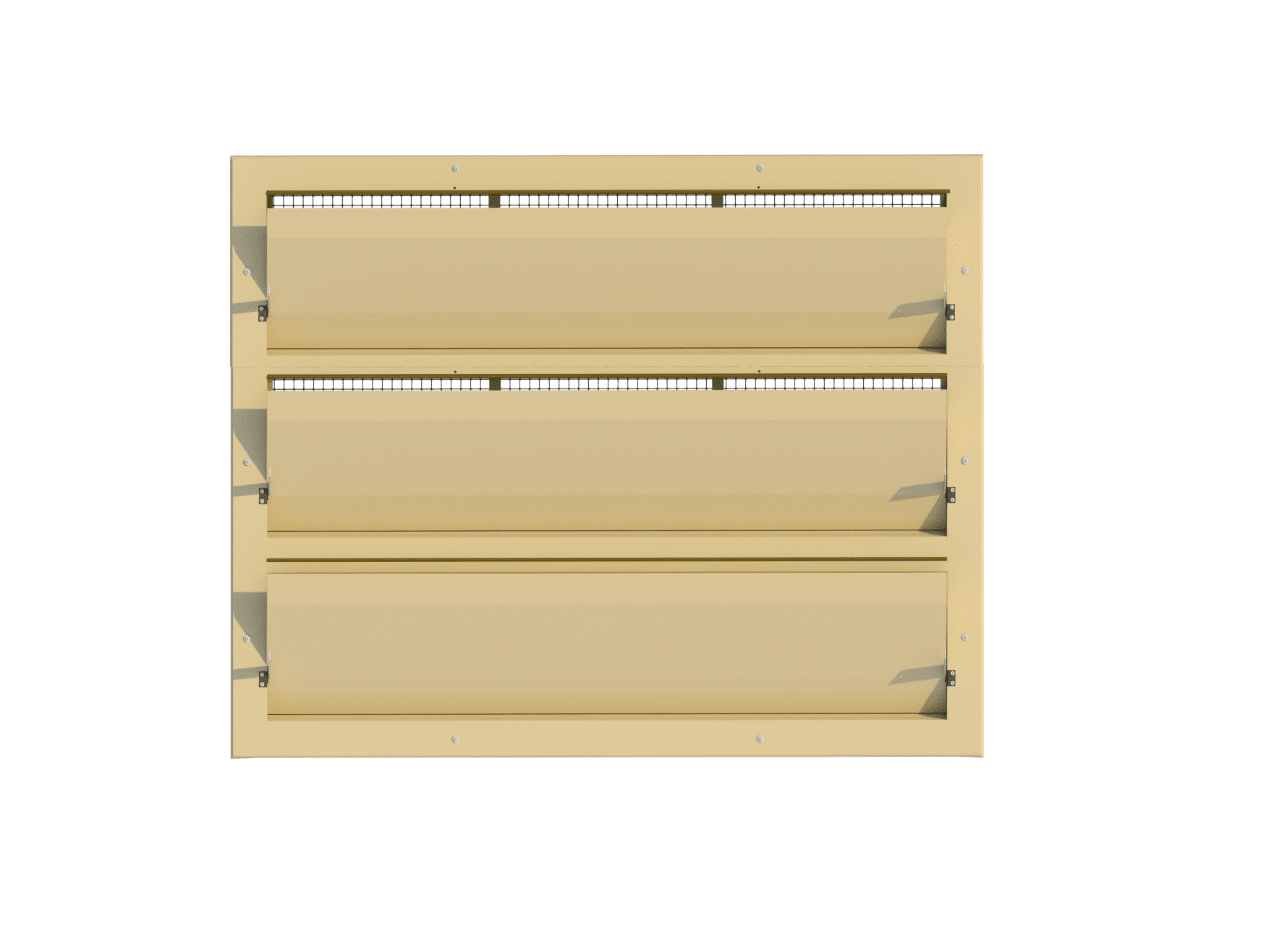

This tunnel unit is built up out of tree single 6000-VFR inlets. This version is equipped with a straight inner valve that guides the air upwards during minimum ventilation. After opening further than 35% the air will also flow underneath the inner valve. This unit is controlled by side arms that connect the inner valves.



Capacity in m3/hour at a static pressure of:



Model

10Pa

20Pa

40Pa

6000-3 Series

17400

26250

34800

Product information:



Run

17 cm / 6.7 Inch

Force

39 kg / 382.5 Newton

Number / pallet

5 (1.65 x 0.95 x 2.40 m)

Weight / per inlet

31.89 kg / 70.16 Lbs

Volume / per box

1
