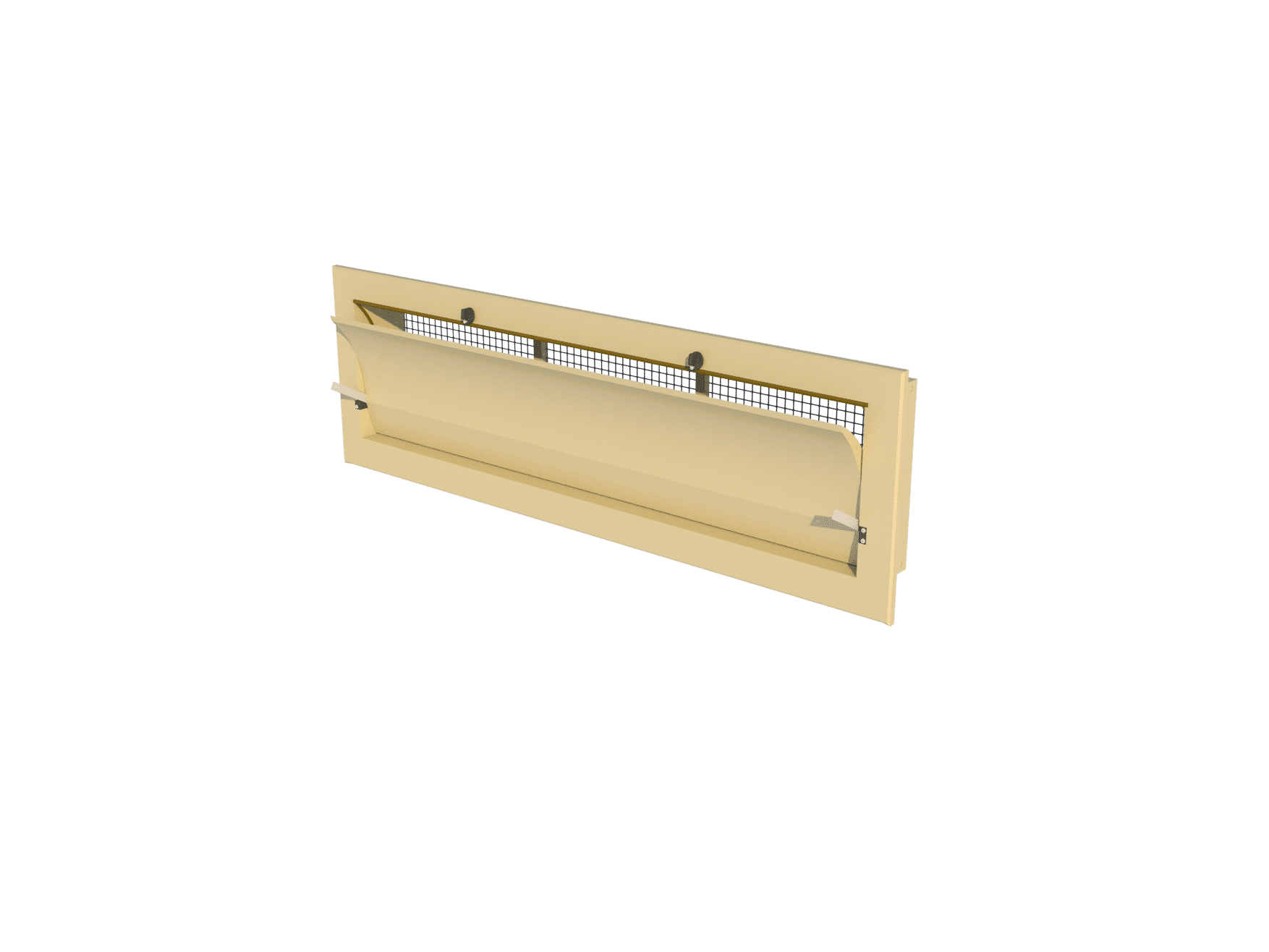

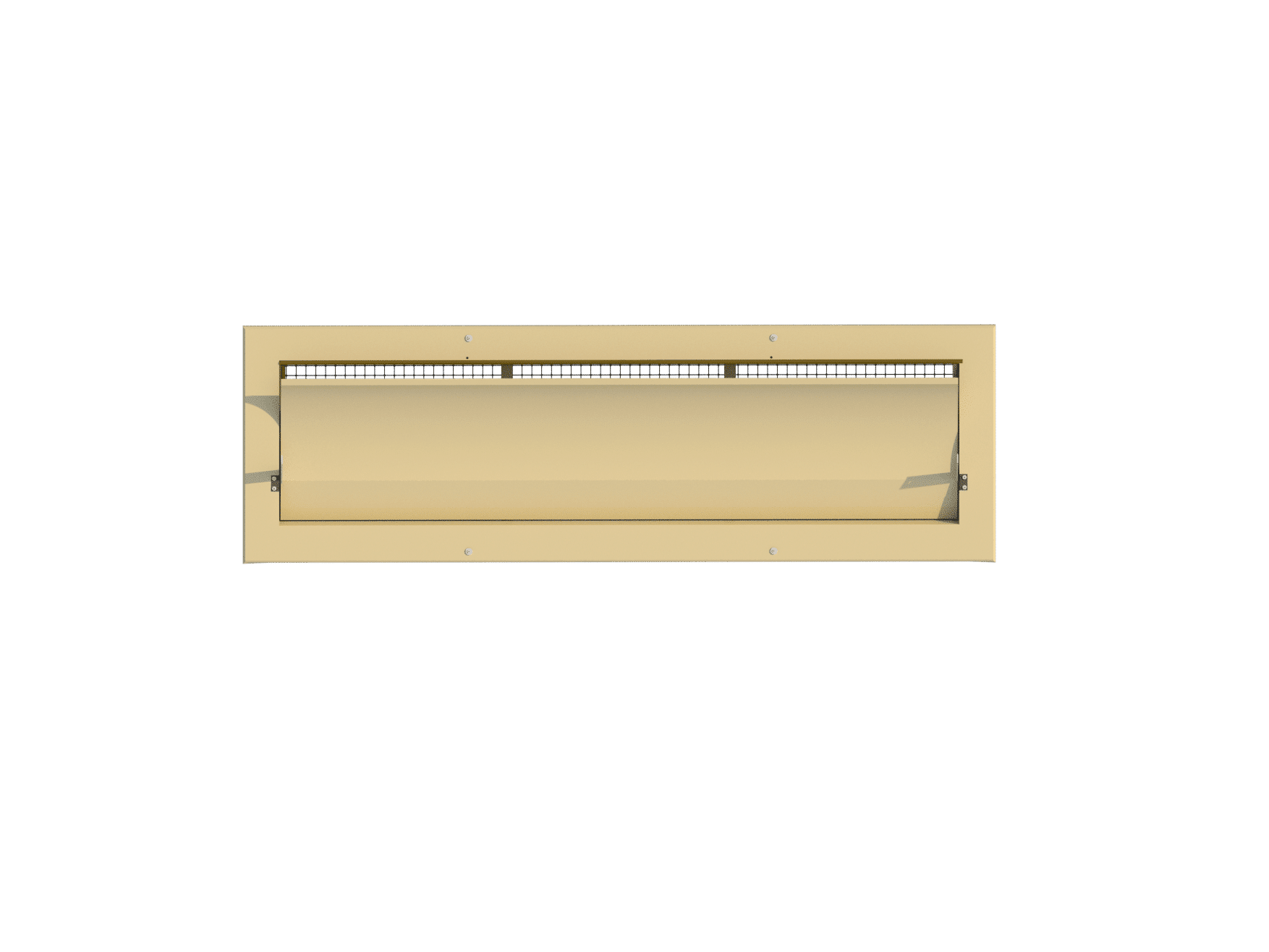

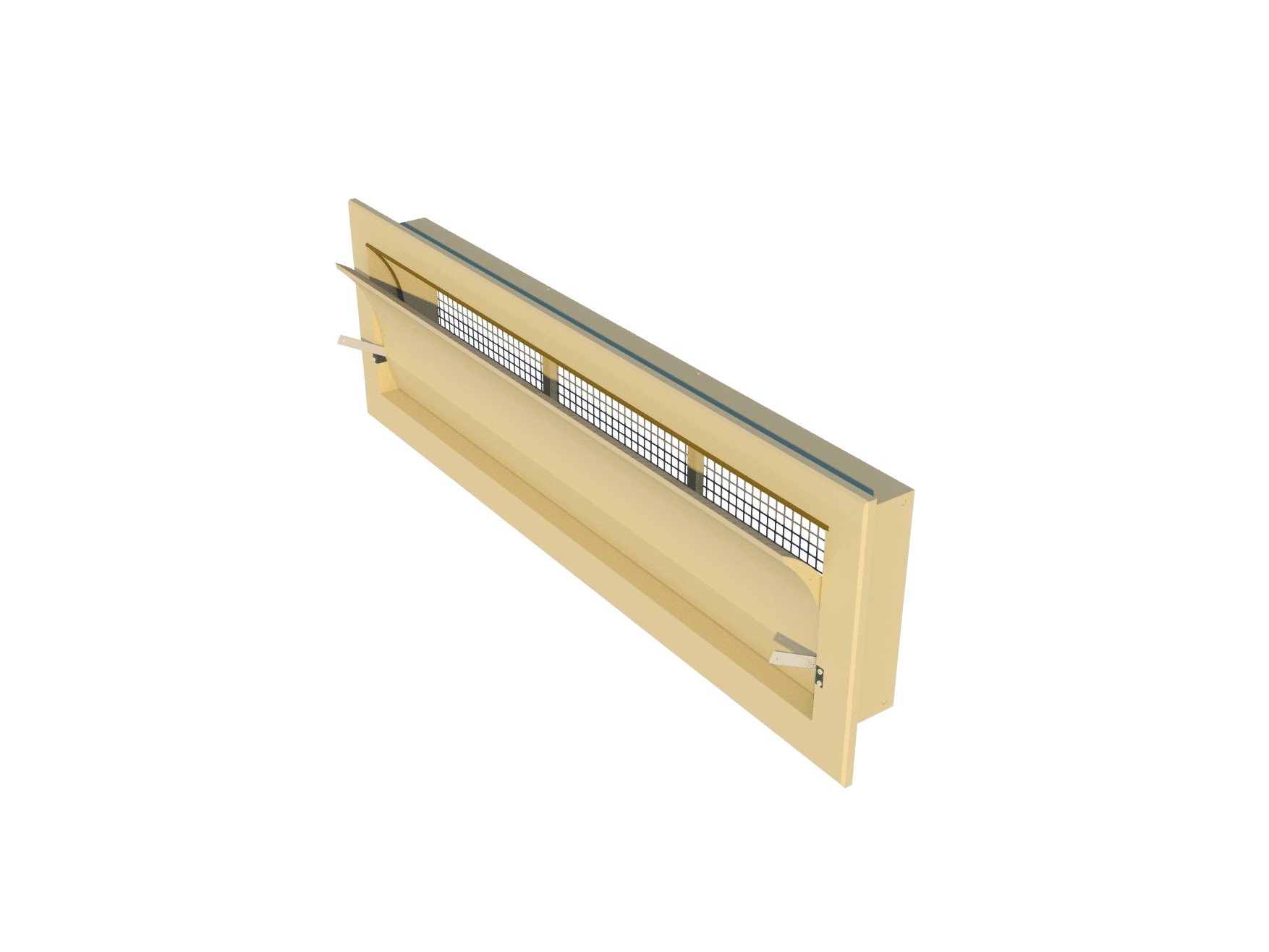

6000-VFG Air Inlet

This air inlet is by far our biggest wall inlet in the familiar rectangular shape. This inlet is controlled by two stainless steel arms to offer maximum control and precision. This inlet is designed with the option to combine multiple inlets into a complete tunnel unit. This version is equipped with a curved inner valve which also guides air down after being opened over 35%.



Capacity in m3/hour at a static pressure of:



Model

10Pa

20Pa

40Pa

6000-Series

5800

8750

11600

Product information:



Run

17 cm / 6.7 Inch

Force

13 kg / 127.40 Newton

Number / pallet

20 (1.65 x 1.05 x 2.40 m)

Weight / per inlet

10.80 kg / 23.76 Lbs

Volume / per box

4
