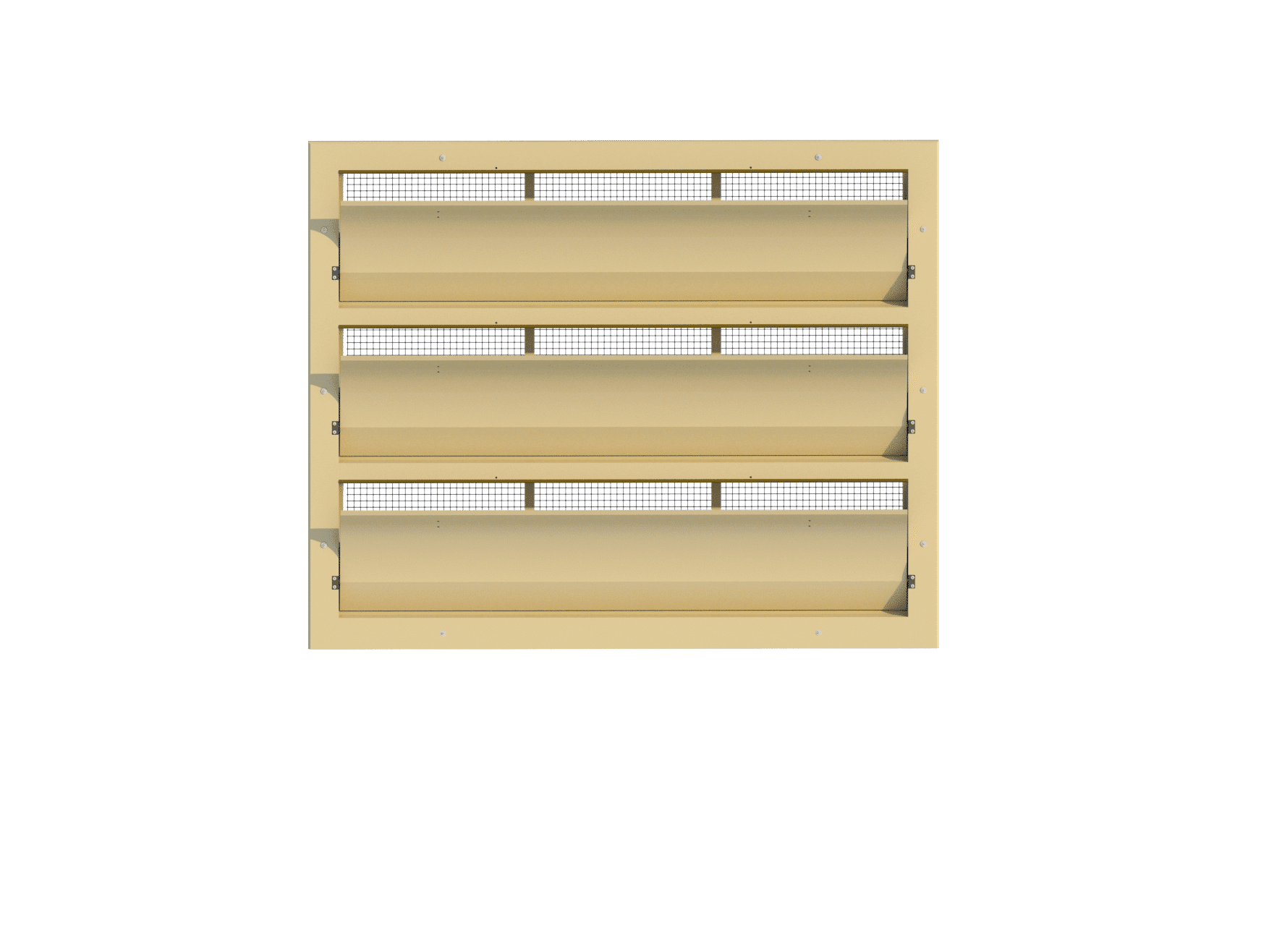

6000-VFG-3-C Tunnel Unit

This tunnel unit is built up out of three single 6000-VFG inlets. This version is equipped with a curved inner valve that guides the air upwards during minimum ventilation. After opening further than 35% the air will also flow underneath the inner valve. This unit is controlled by two central arms per valve, which in turn, are connected with the other inner valves.



Capacity in m3/hour at a static pressure of:



Model

10Pa

20Pa

40Pa

6000-3 Series

17400

26250

34800

Product information:



Run

40 cm / 15.7 Inch

Force

10.5 kg / 103 Newton

Number / pallet

5 (1.65 x 1.05 x 2.40 m)

Weight / per inlet

31.9 kg / 70.3 Lbs

Volume / per box

1
