6000-VFG-2 Tunnel Unit

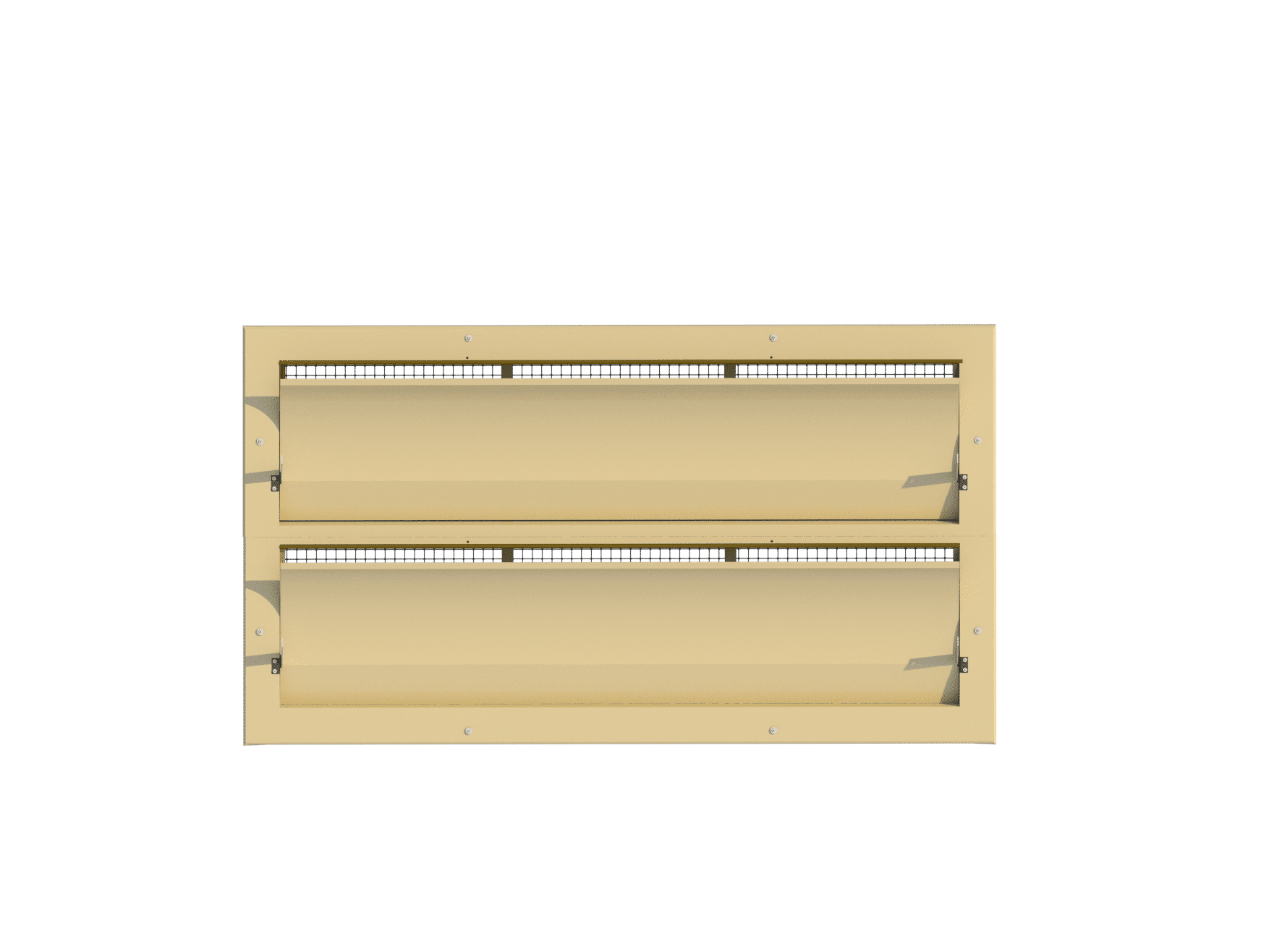

This tunnel unit is built up out of two single 6000-VFG inlets. This version is equipped with a curved inner valve that guides the air upwards during minimum ventilation. After opening further than 35% the air will also flow underneath the inner valve. This unit is controlled by side arms that connect the inner valves.
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
|---|---|---|---|
6000-2 Series | 11600 | 17500 | 23200 |
Product information:
Run | 17 cm / 6.7 Inch |
Force | 26 kg / 255 Newton |
Number / pallet | 10 (1.65 x 0.95 x 2.40 m) |
Weight / per inlet | 21.26 kg / 46.77 Lbs |
Volume / per box | 2 |
