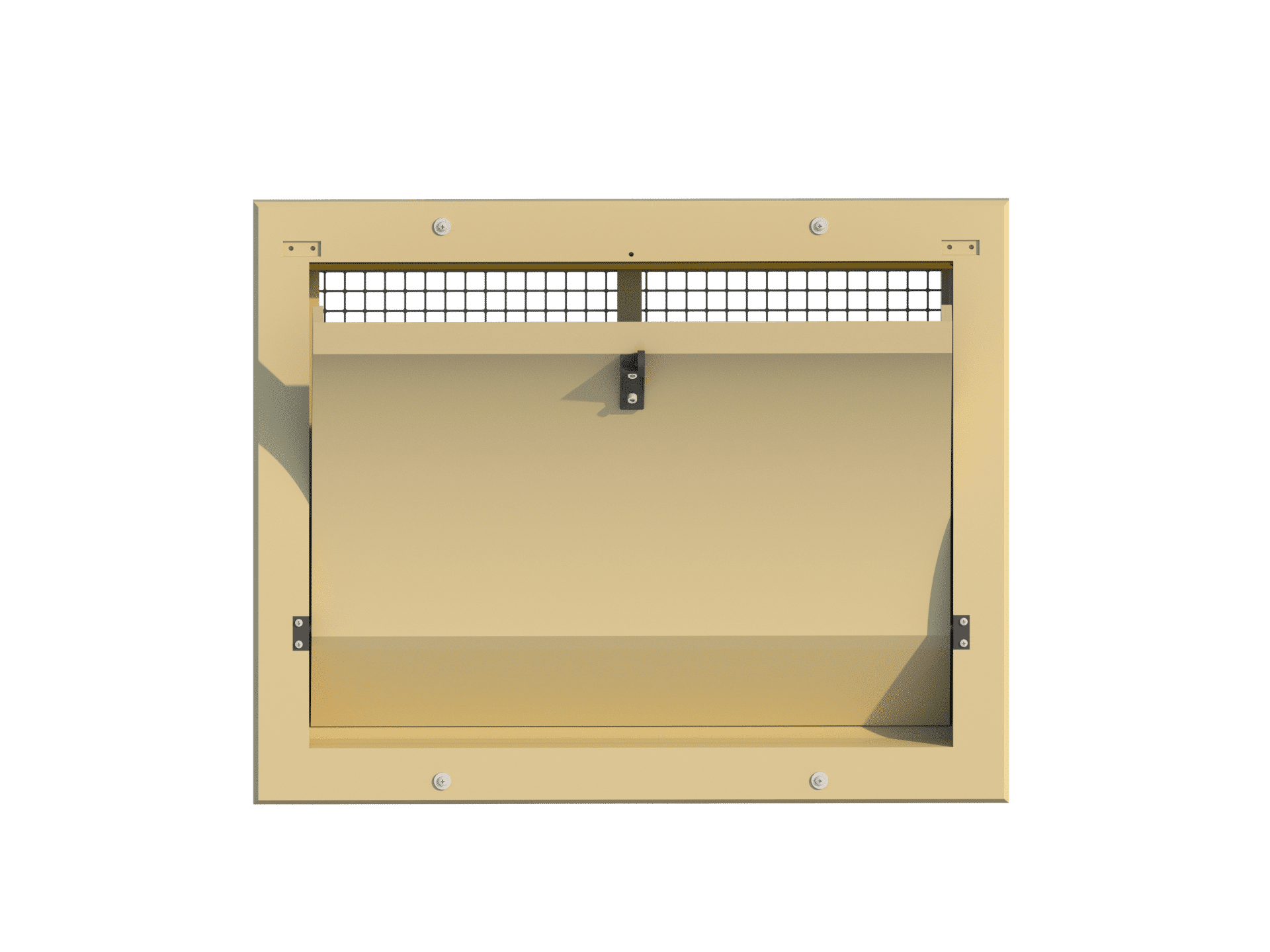

4000-VFG-C Air Inlet

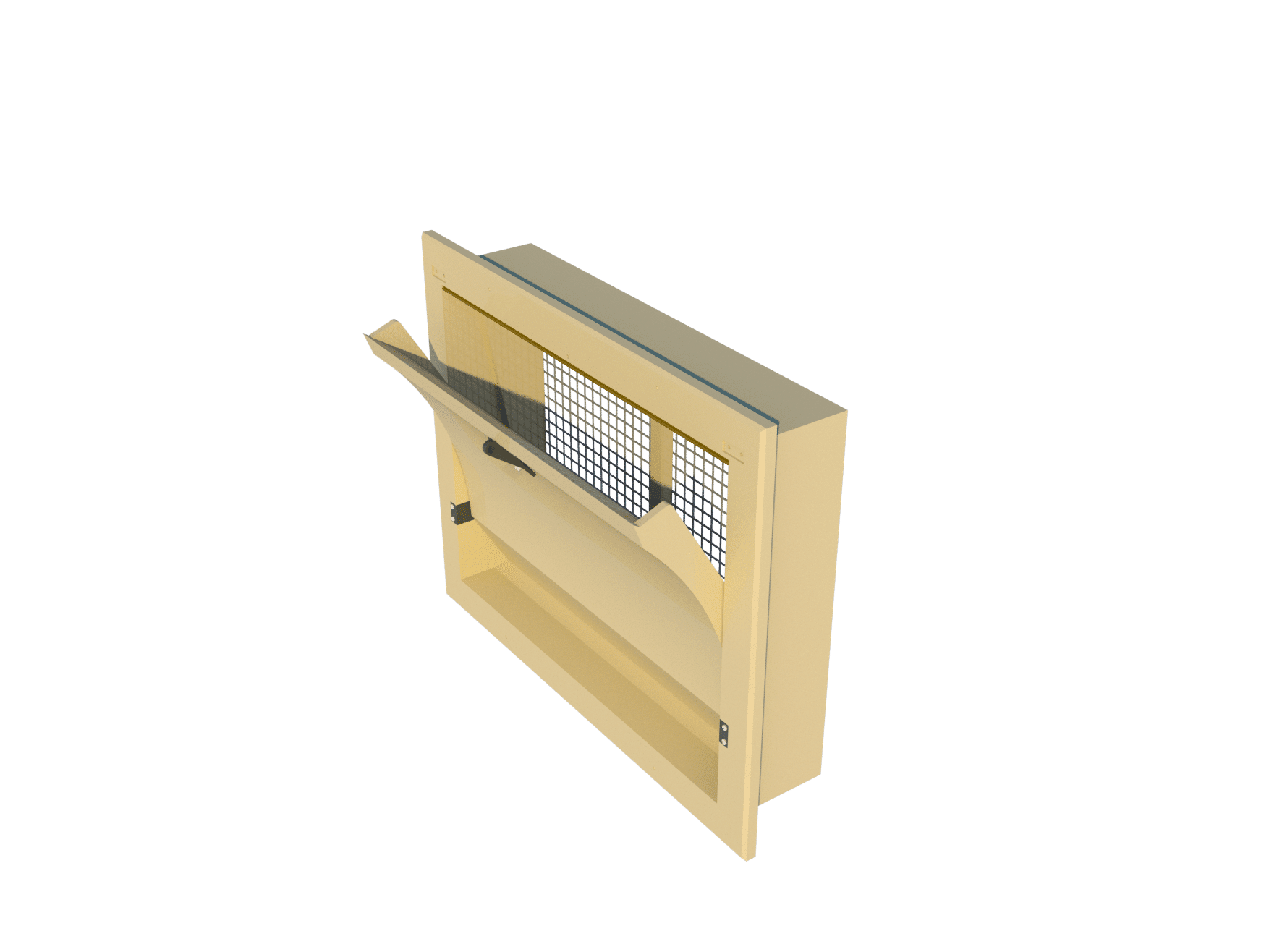

This air inlet is suitable for almost all applications. With a center-hinged inner flap, the air is distributed and also flows under the flap when opened more than 25%. The inlet is operated with a central plastic control arm. This inlet is equipped with a curved inner flap, when opened for maximum ventilation, the air is also directed down towards the animals. The square shape and the slightly curved inner flap of this inlet make it particularly suitable for wider stables where a larger throw is desirable.



Capacity in m3 / hour at a static pressure of:



Model

10Pa

20Pa

40Pa

4000-Series

3900

5500

7800

Product information:



Run

65 cm / 25.6 Inch

Force

2 kg / 19.6 Newton

Number / pallet

18 (1.20 x 0.80 x 2.40 m)

Weight / per inlet

4.05 kg / 8.91 Lbs

Volume / per box

9
