3000-VFBR-C Air Inlet

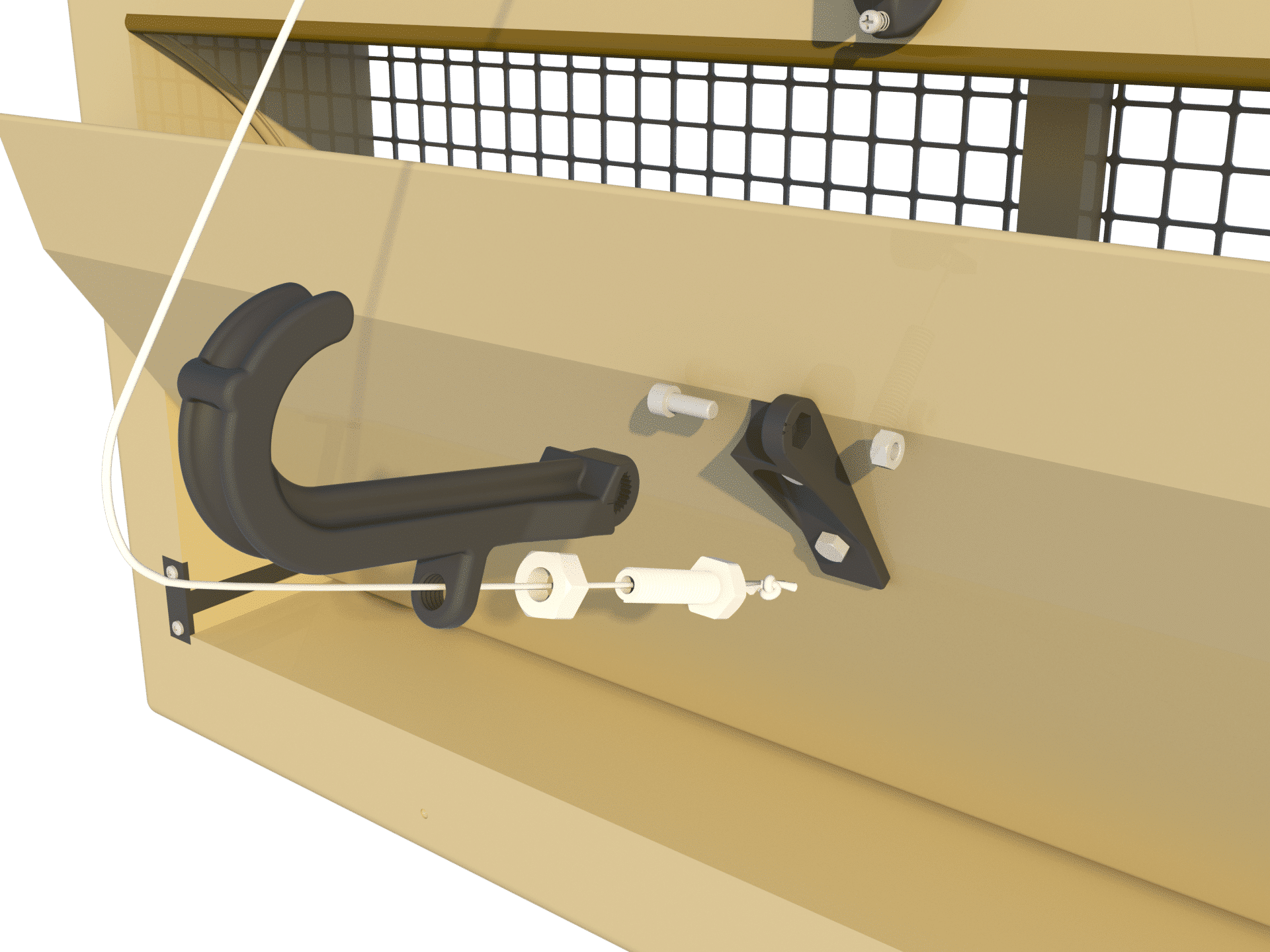

Equipped with a bottom hinged and straight inner valve we make sure the air is not guided downwards to the animals during maximum ventilation. The inner valve and house of this inlet are equipped with seals all around to prevent air leakage. Curved inner corners in the house make for a better air flow. The combination of materials and air seals help to make this inlet perfectly suitable for use in extremely low temperatures.



Capacity in m3/hour at a static pressure of:



Model

10Pa

20Pa

40Pa

3000-Series

2900

4100

5800

Product information:



Run

41 cm / 16,1 Inch

Force

2 kg / 19.6 Newton

Number / pallet

42 (1.30 x 1.00 x 2.50 m)

Weight / per inlet

4.1 kg / 9 Lbs

Volume / per box

21
