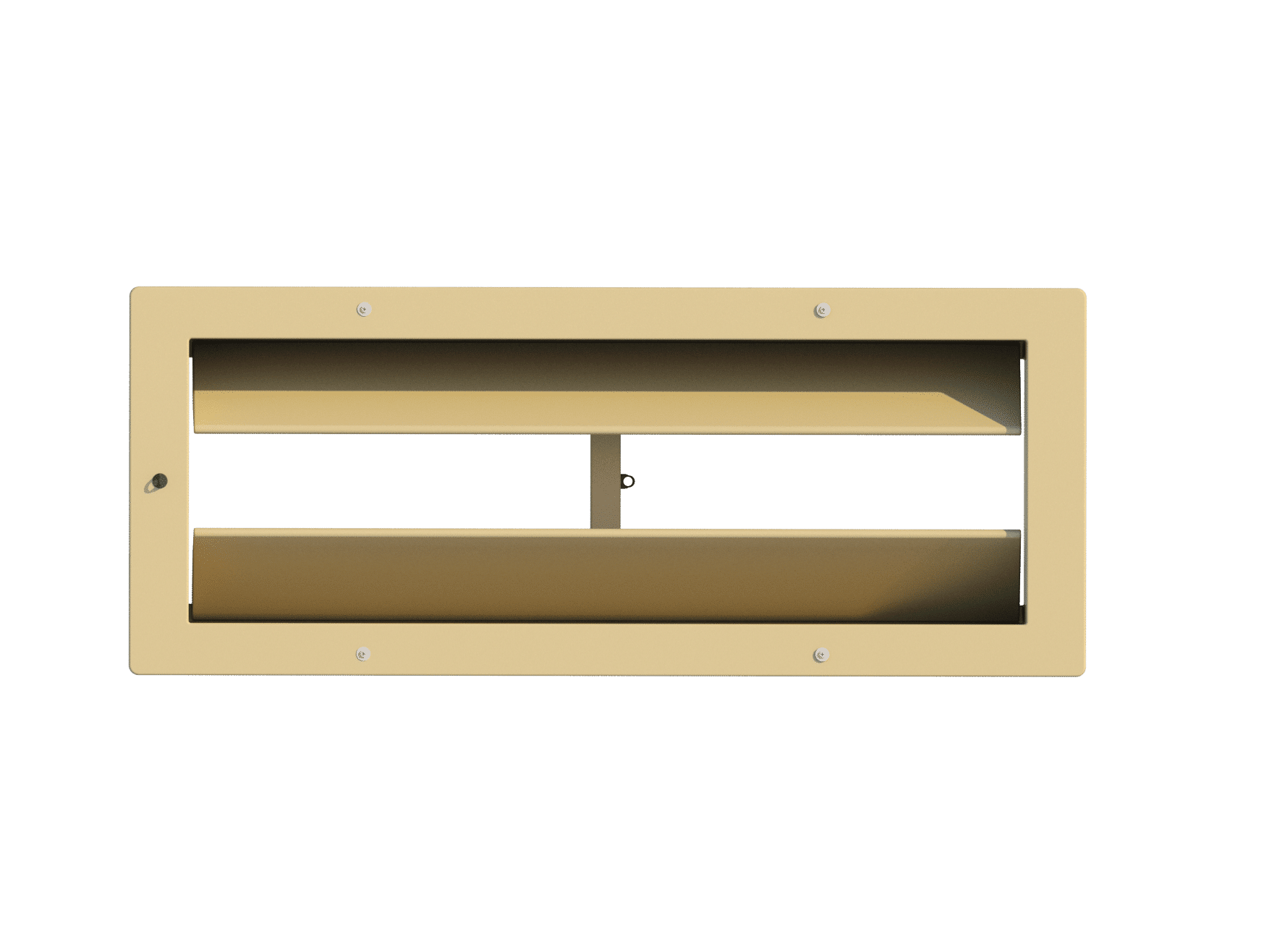

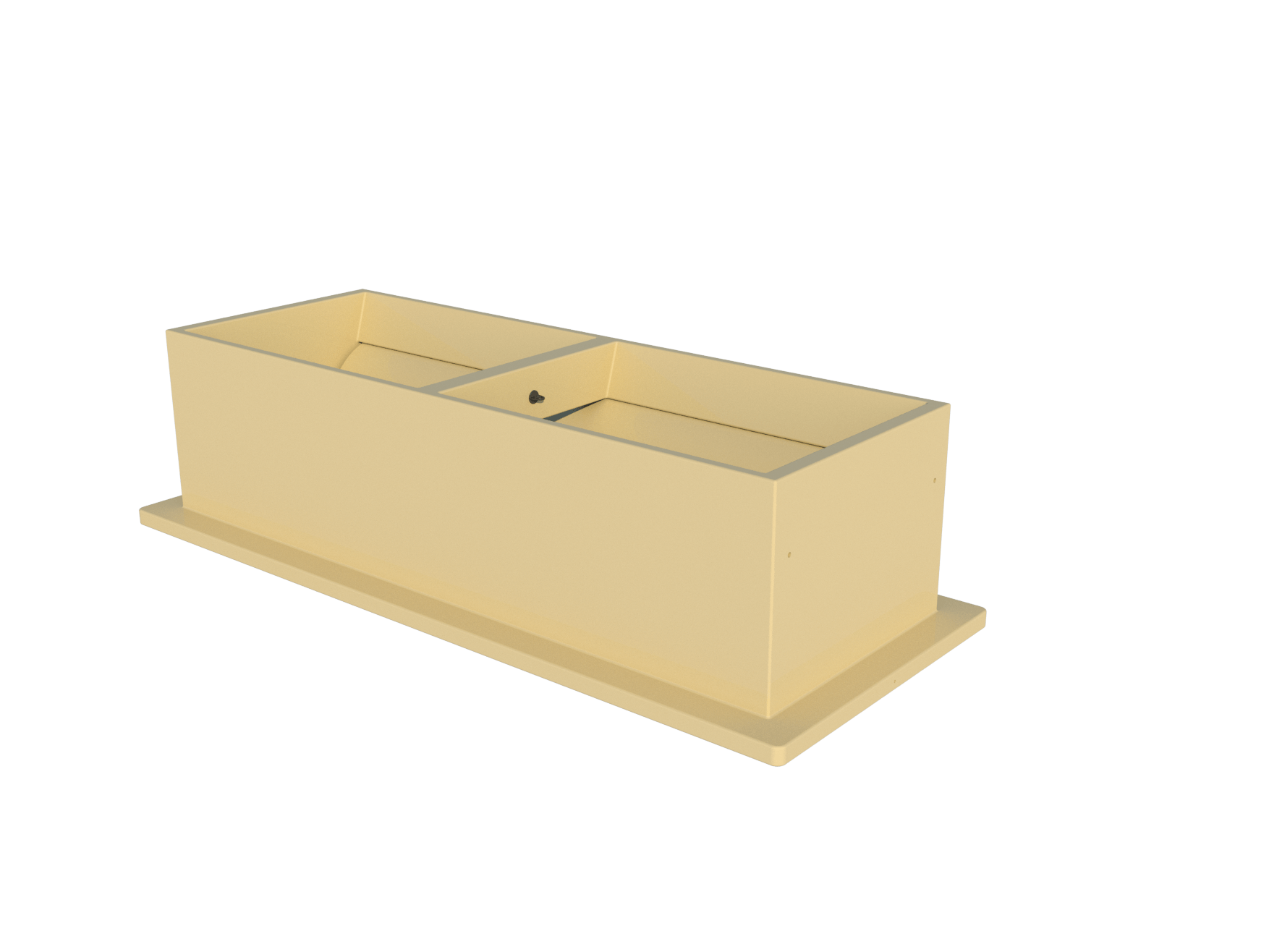

220-P Ceiling Inlet

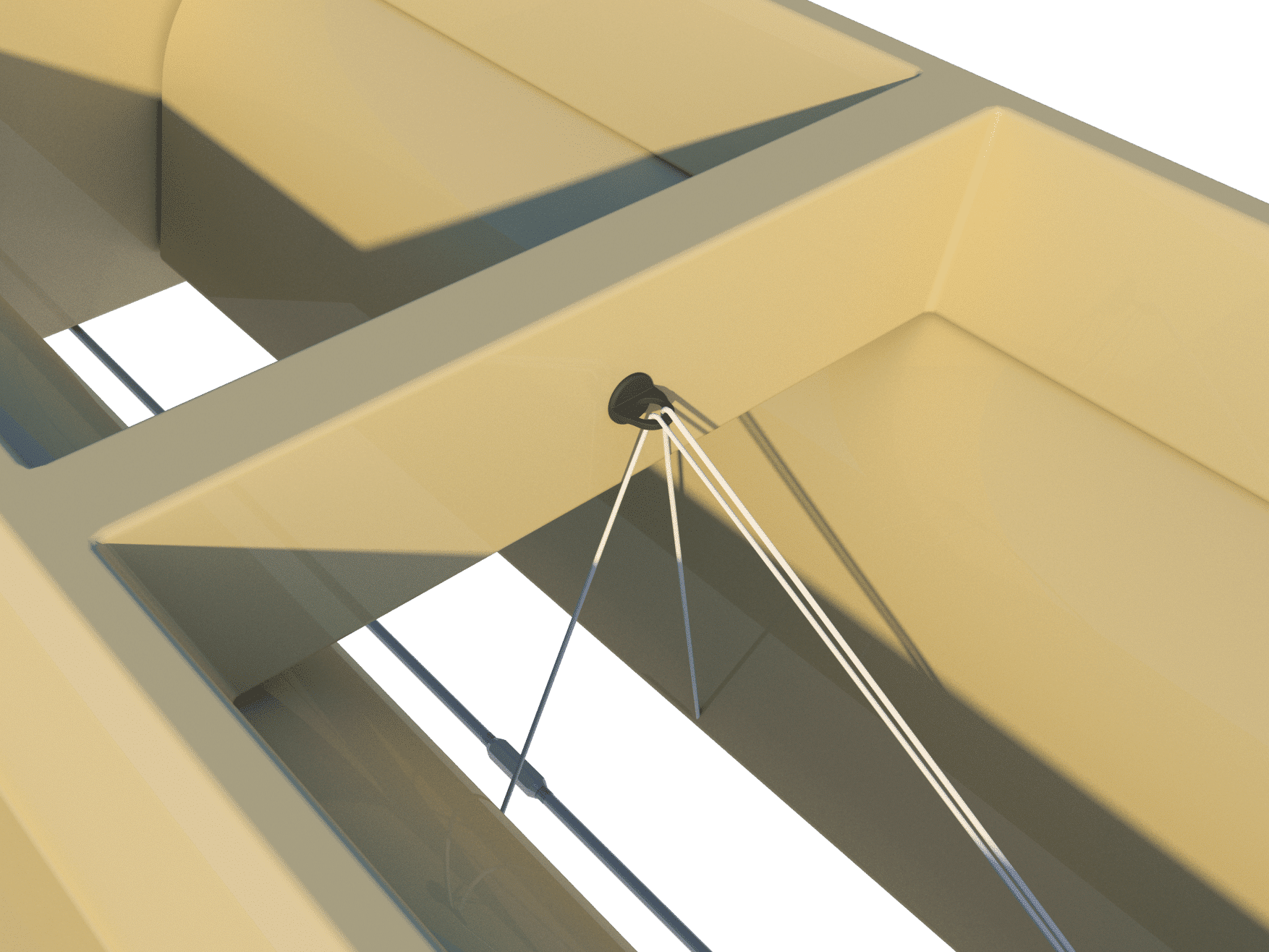

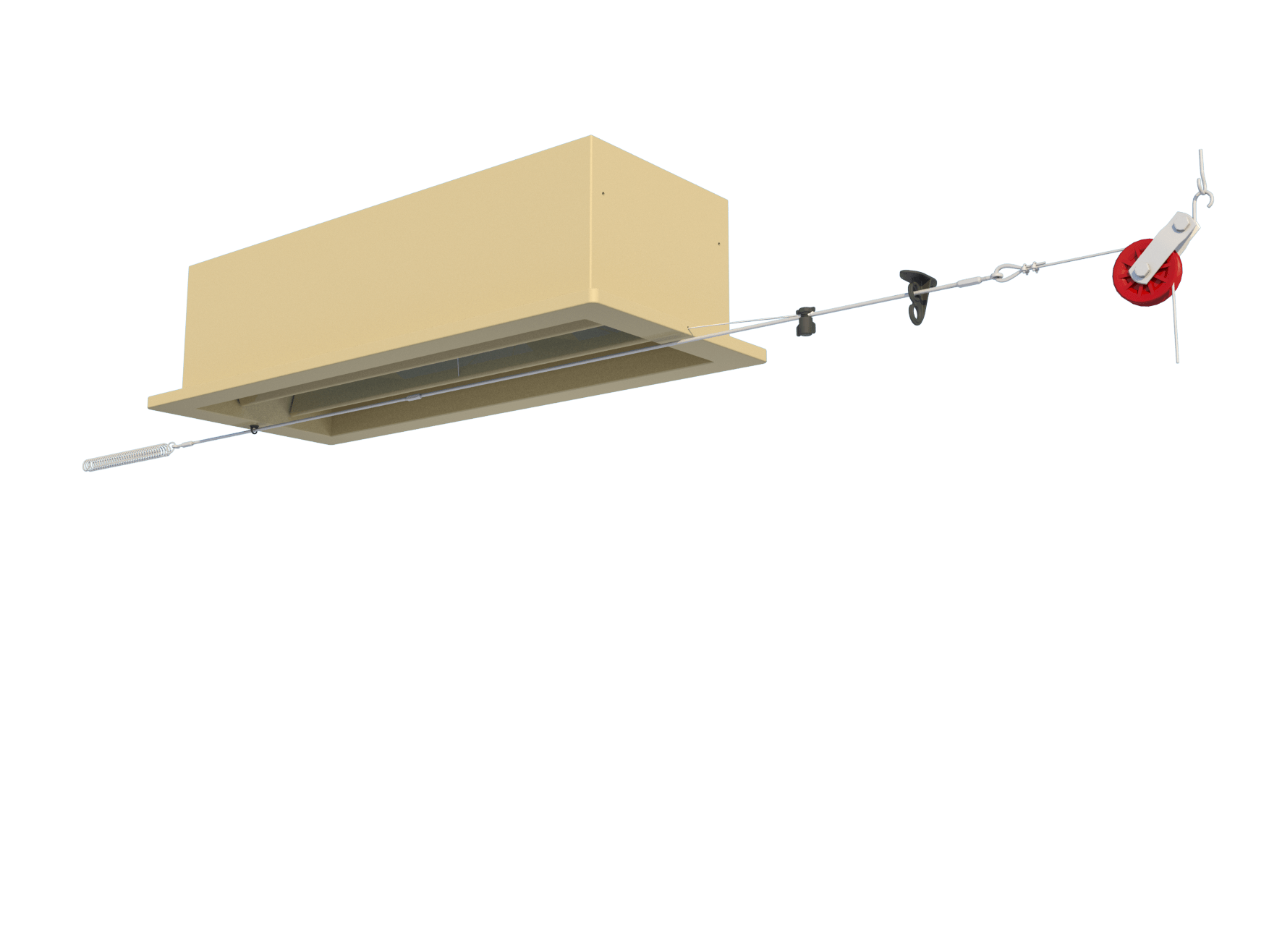

This inlet is specially designed for installation in the ceiling above corridors or pathways. The 220-P ceiling inlet is used to bring air from the attic into the house. Working with ceiling inlets helps to preheat the temperature of incoming air. Through this ceiling inlet air is channeled directly down to the floor. This inlet has cords connected directly to the two inner flaps.



Capacity in m3/hour at a static pressure of:



Model

10Pa

20Pa

40Pa

220-P

2265

2830

3300

Product information:



Run

10 cm / 3.9 Inch

Force

2.2 kg / 21.6 Newton

Number / pallet

24 (1.20 x 1.00 x 2.40 m)

Weight / per inlet

4.24 kg / 9.33 Lbs

Volume / per box

12
