2000-PBR-C Air Inlet

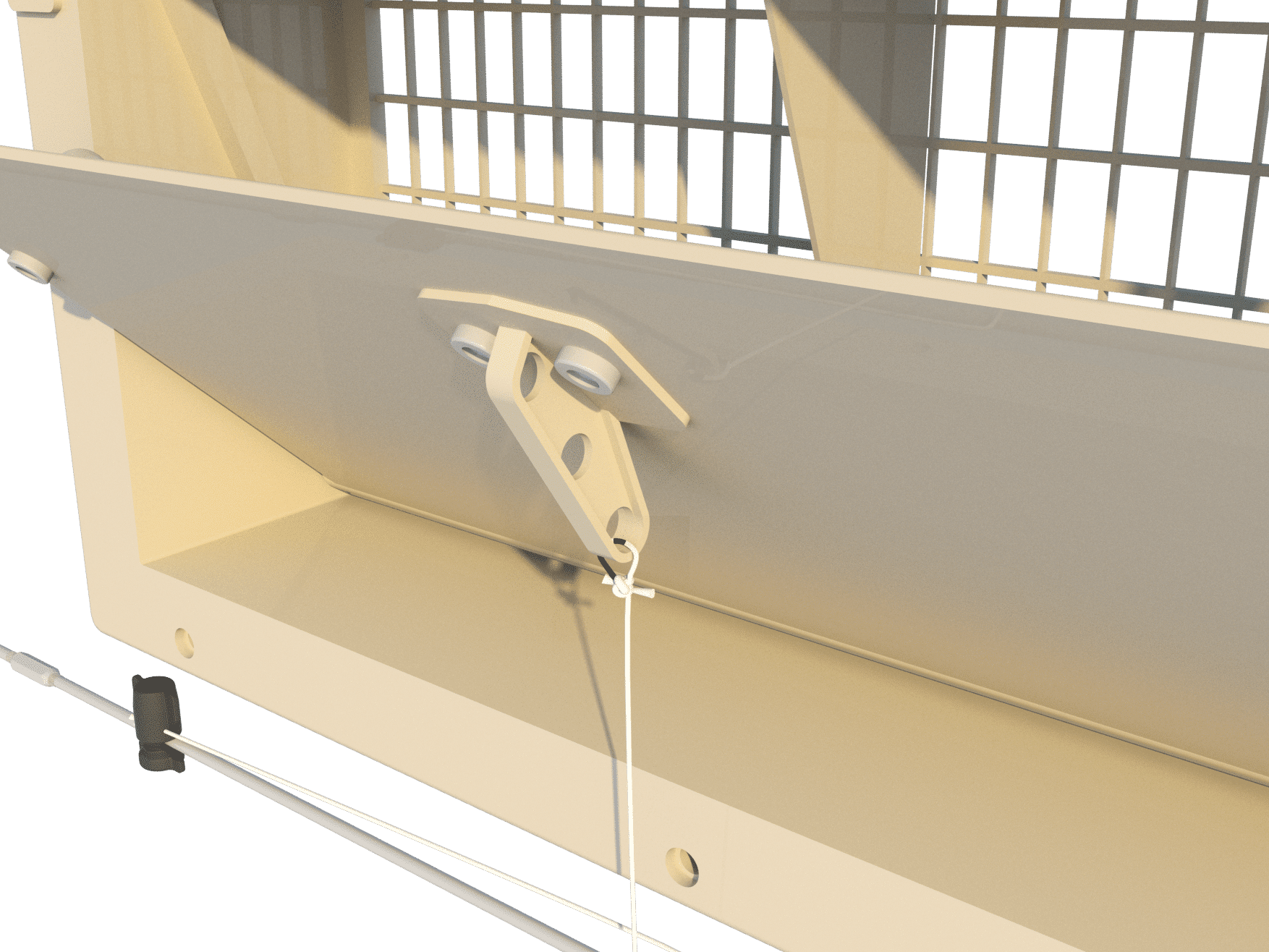

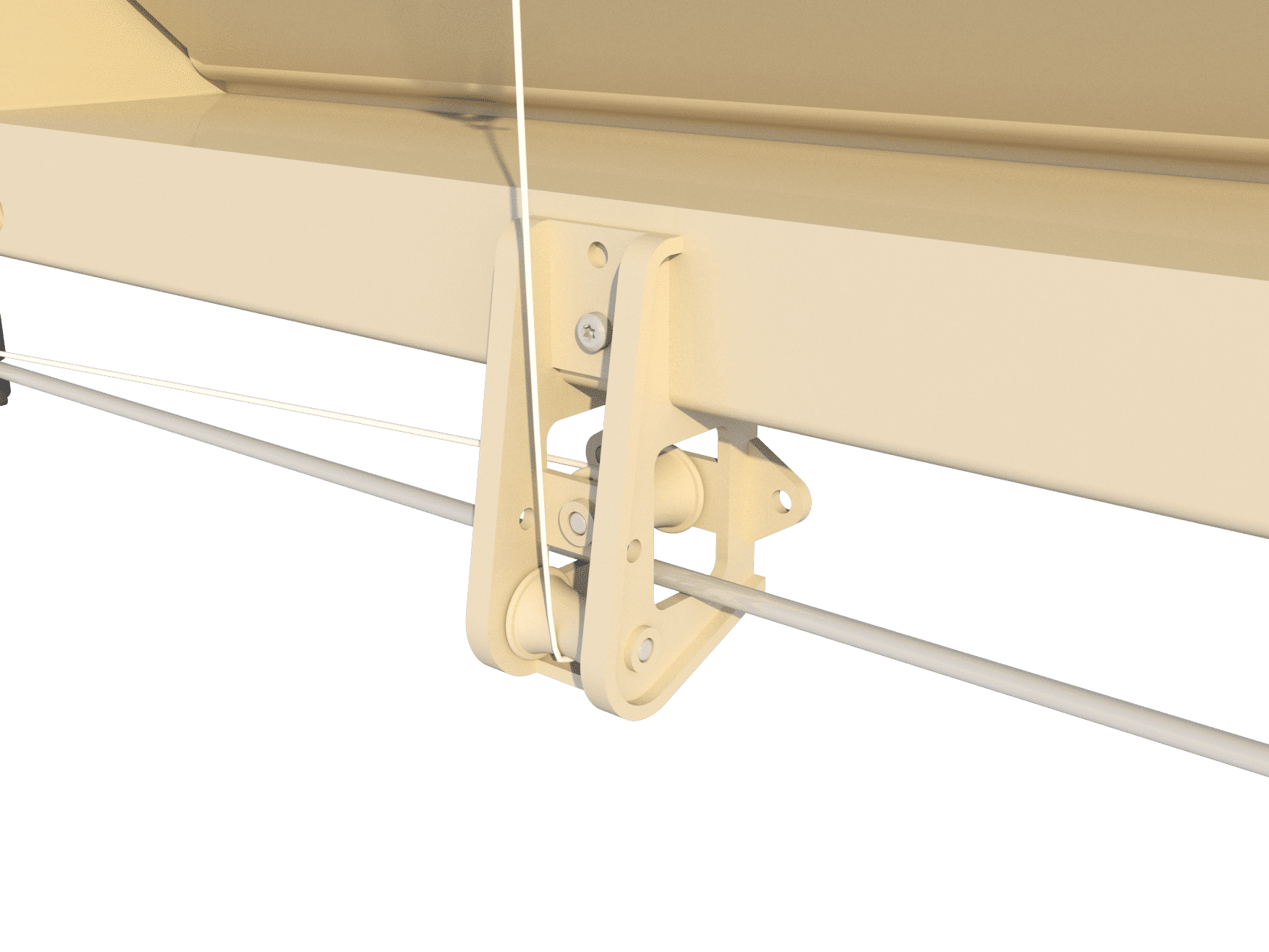

As an exception to our program this air inlet valve is not made out of polyurethane but out of UV-stabilized ABS. This air inlet is specially developed for areas where insulation is less relevant. The inner valve of the inlet valve is still insulated with an EPS panel. With a straight inner valve the air is not guided downwards to the animals during maximum ventilation. The inlet is produced in a normally closed version so it is opened by pulling the cord down, therefore the pulley unit is mounted on the bottom flange.
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
|---|---|---|---|
2000-Series | 1800 | 2500 | 3600 |
Product information:
Run | 20 cm / 7.9 Inch |
Force | 9 kg / 88.3 Newton |
Number / pallet | 42 (1.20 x 0.80 x 2.40 m) |
Weight / per inlet | 4.2 kg / 9.3 Lbs |
Volume / per box | 21 |
