160-PD-C Ceiling Inlet

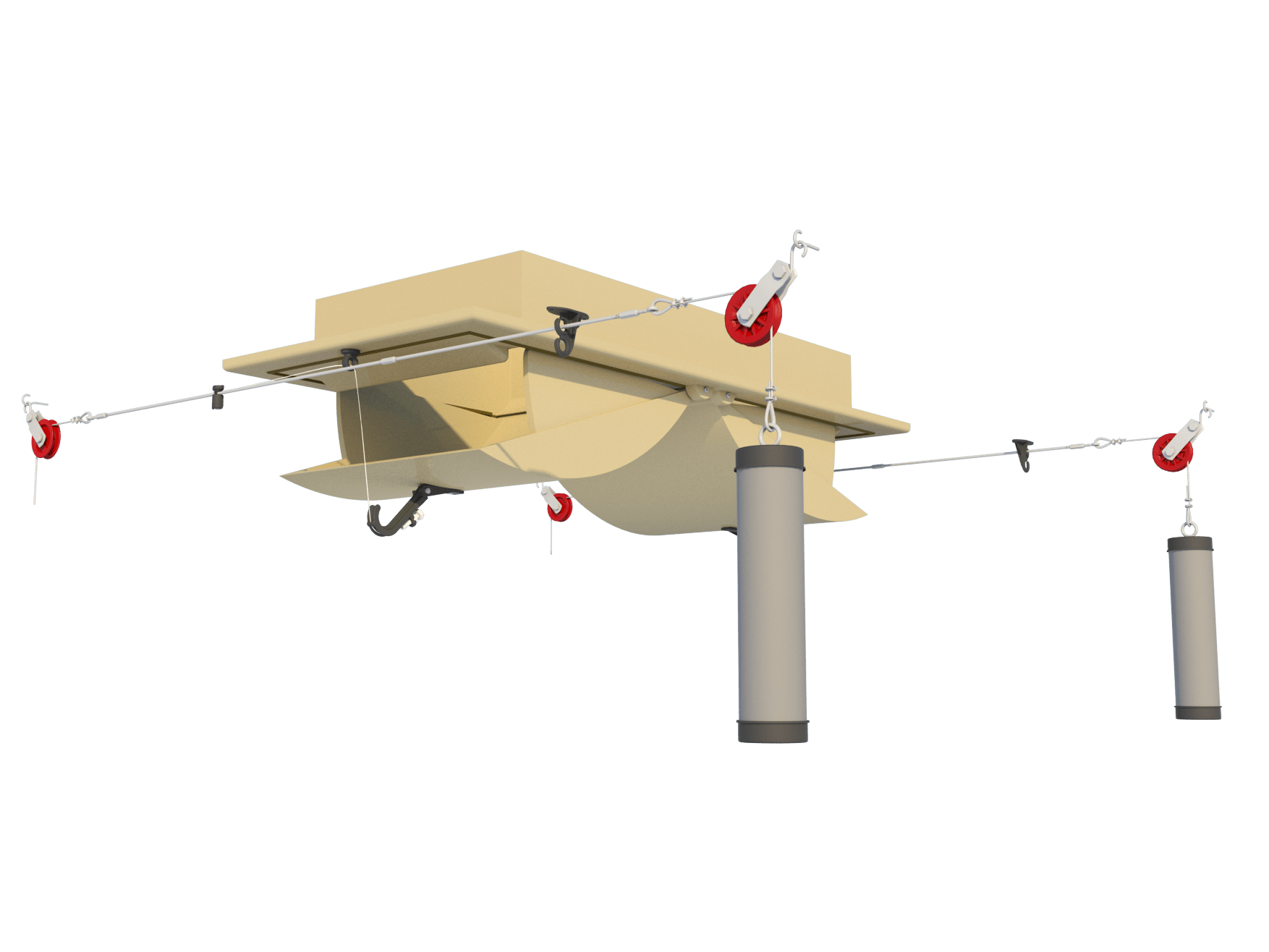

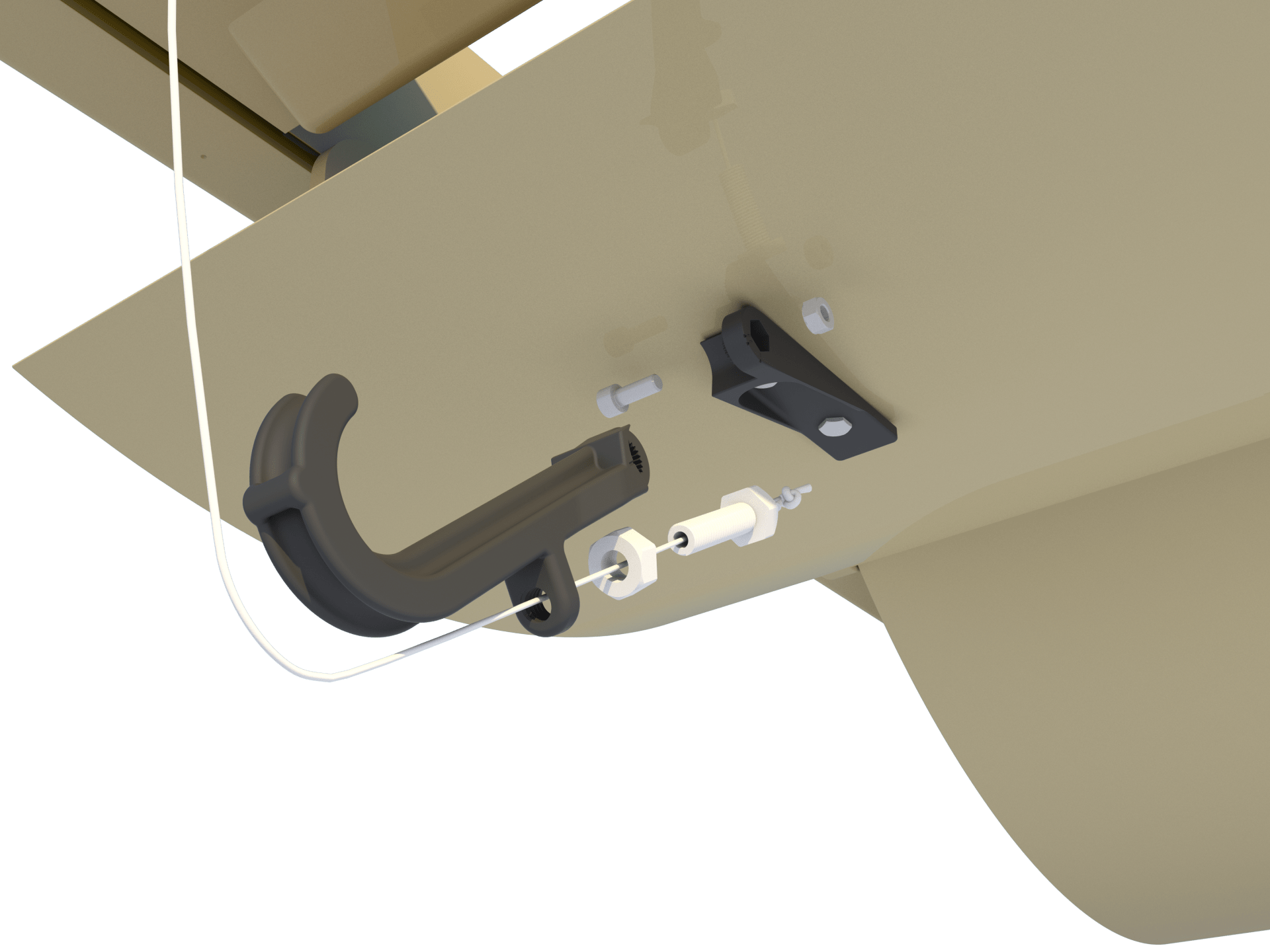

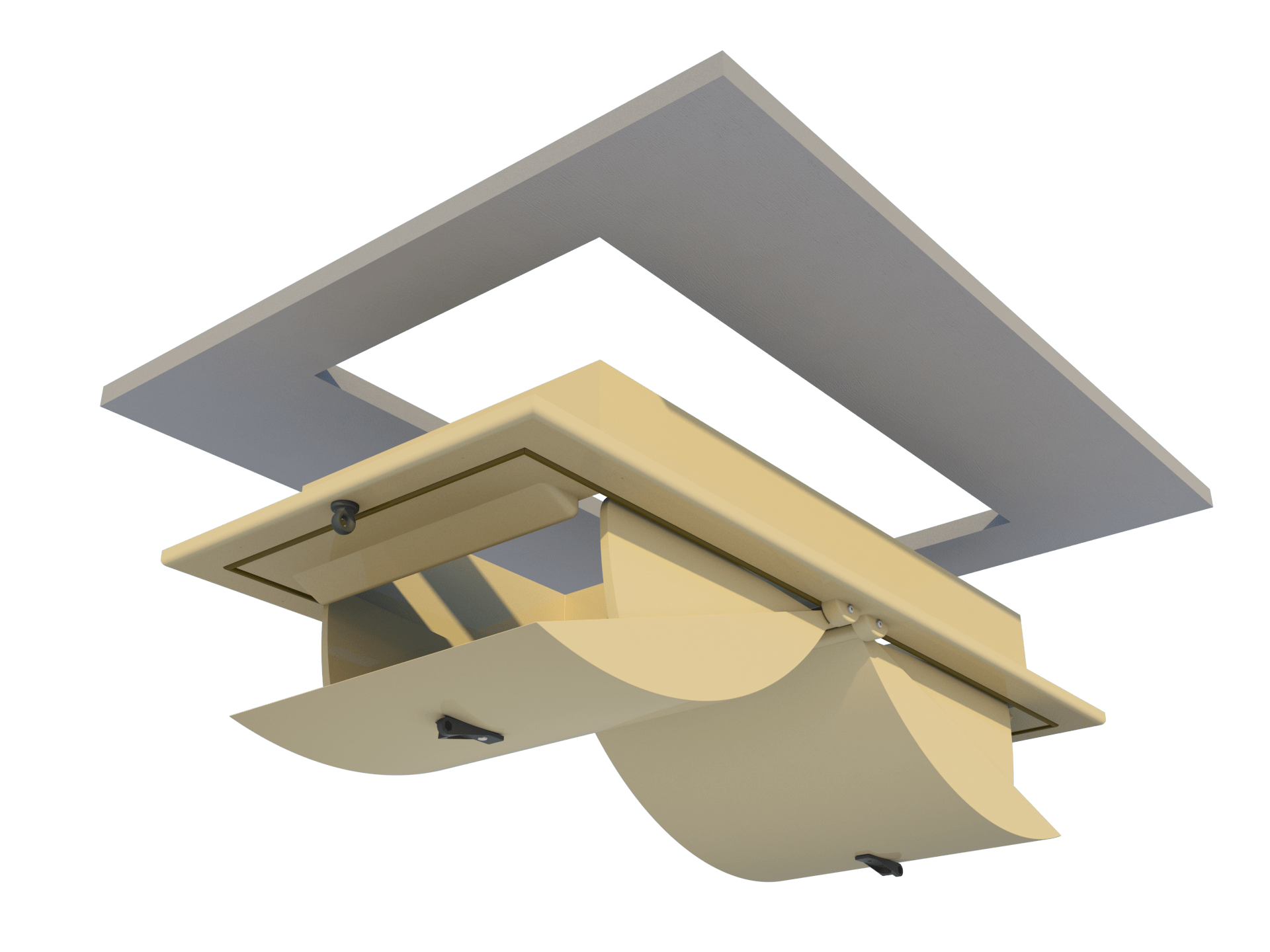

This ceiling inlet is specially designed for installation in ceilings. The inlet is used to bring air from the attic into the house. Working with ceiling inlets, in turn, helps to preheat the temperature of incoming air. The inlet is controlled by means of a central plastic arm. This is the double version of the 160-P-C inlet and it can direct air into two opposite directions.



Capacity in m3/hour at a static pressure of:



Model

10Pa

20Pa

40Pa

160-PD-C

3200

4500

6400

Product information:



Run

20 cm / 7.9 Inch

Force

3 kg / 29.4 Newton

Number / pallet

16 (1.30 x 1.00 x 2.50 m)

Weight / per inlet

5.74 kg / 12.63 Lbs

Volume / per box

8
