160-P-C Ceiling Inlet

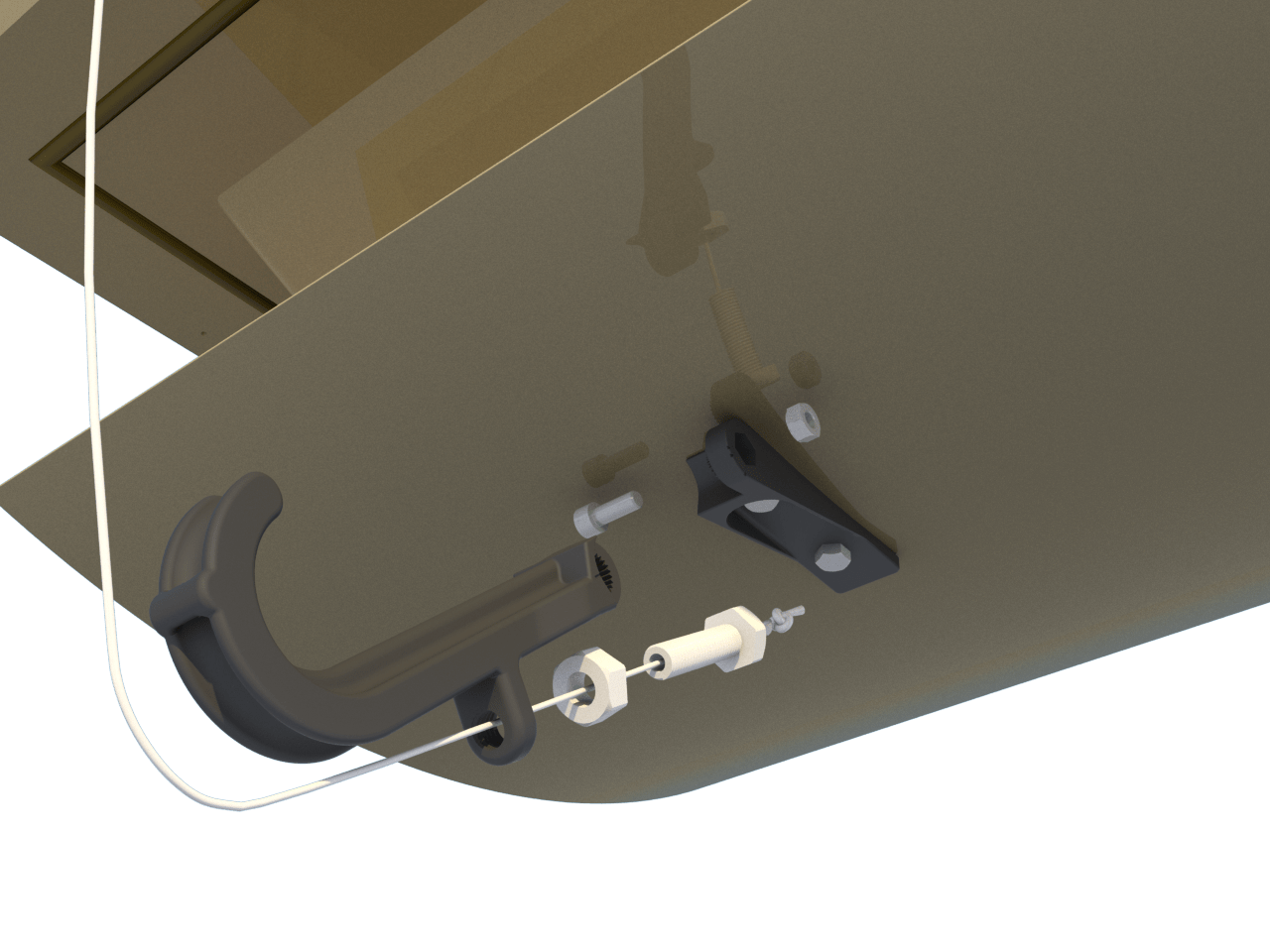

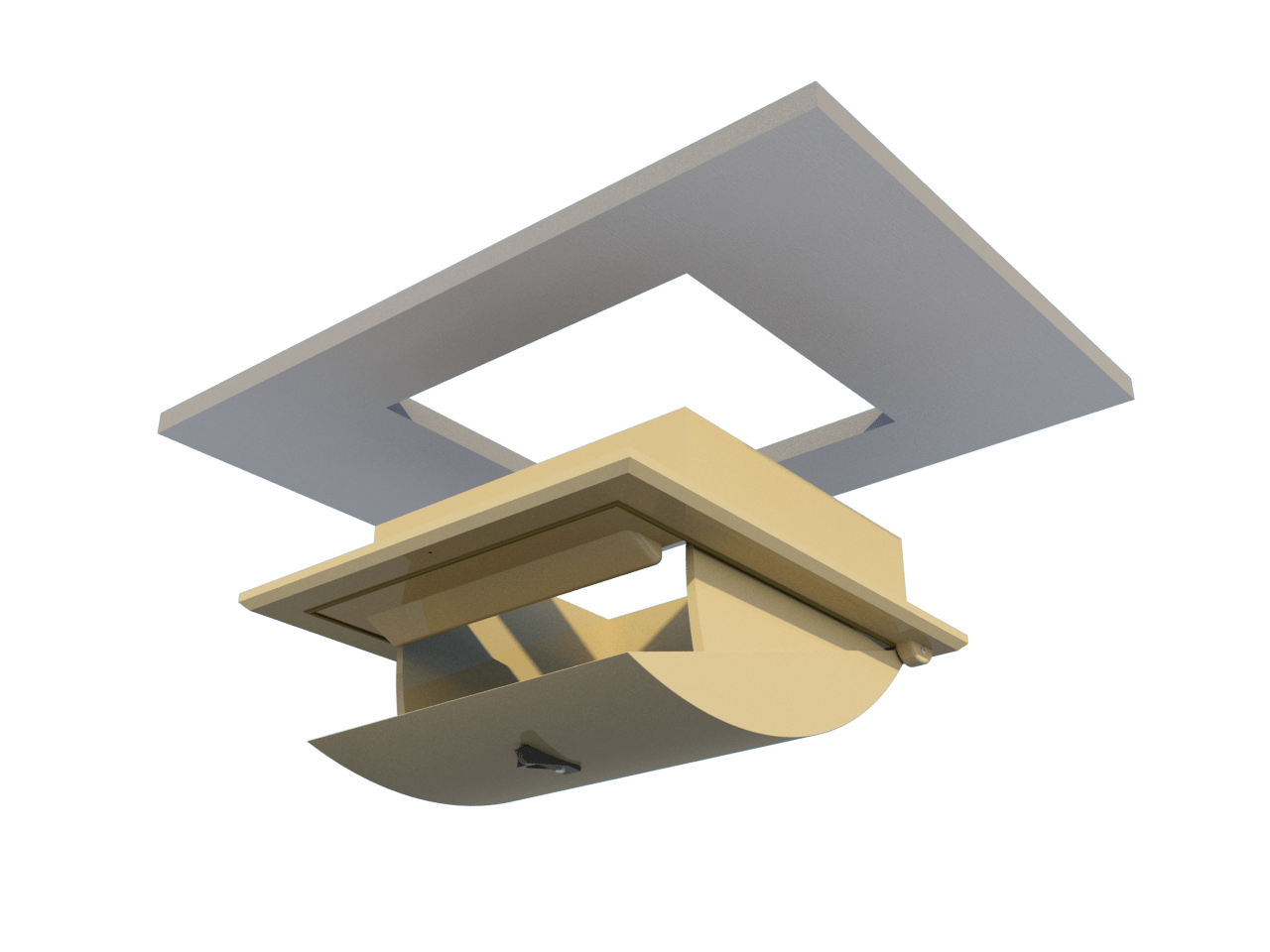

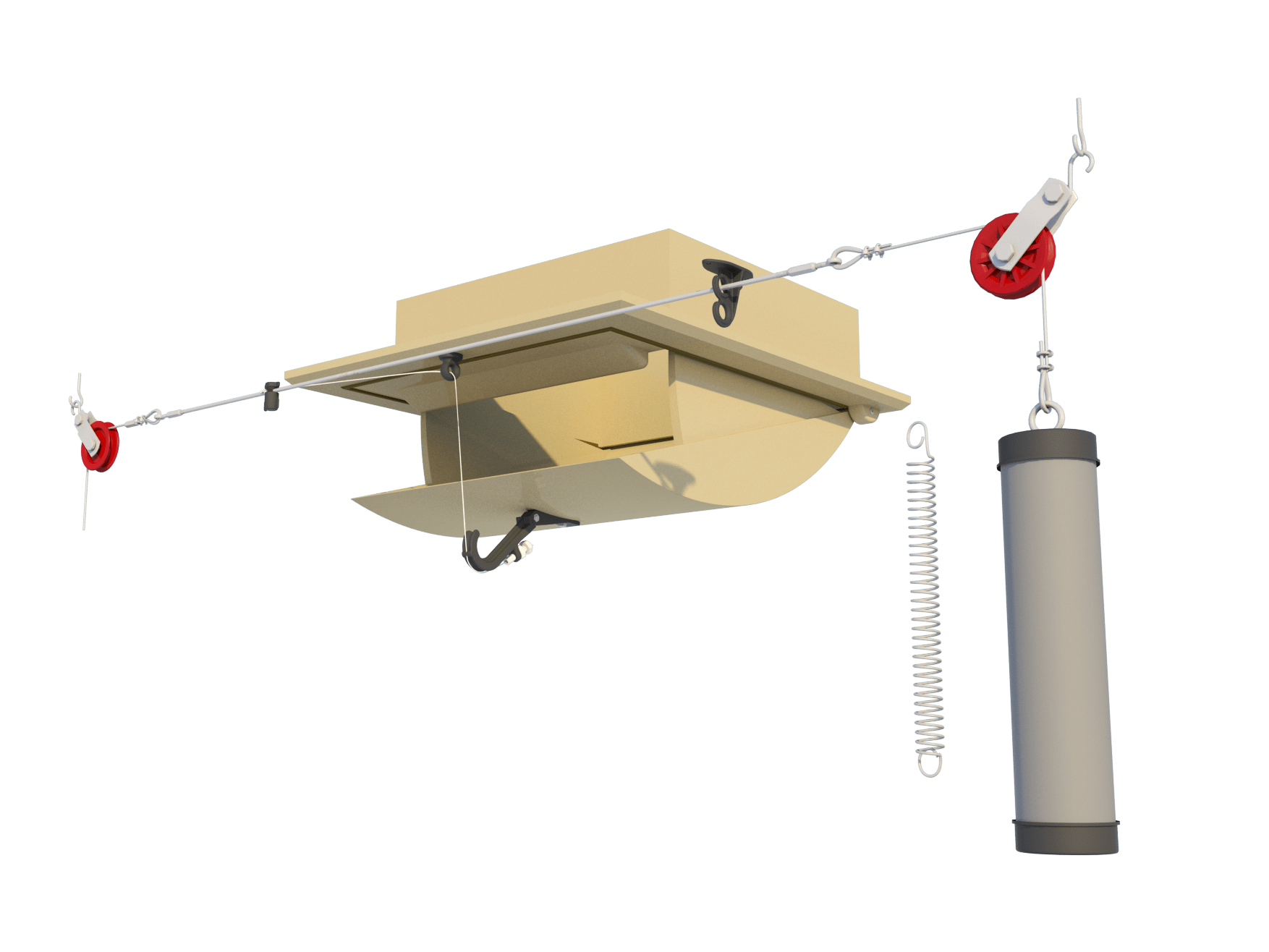

This ceiling inlet is specially designed for installation in ceilings. The inlet is used to bring air from the attic into the house. Working with ceiling inlets, in turn, helps to pre-heat the temperature of incoming air. The inlet is controlled by means of a central plastic arm.



Capacity in m3/hour at a static pressure of:



Model

10Pa

20Pa

40Pa

160-P-C

1600

2250

3200

Product information:



Run

20 cm / 7.9 Inch

Force

1.5 kg / 14.7 Newton

Number / pallet

32 (1.20 x 1.00 x 2.40 m)

Weight / per inlet

1.5 kg / 14.7 Lbs

Volume / per box

16
