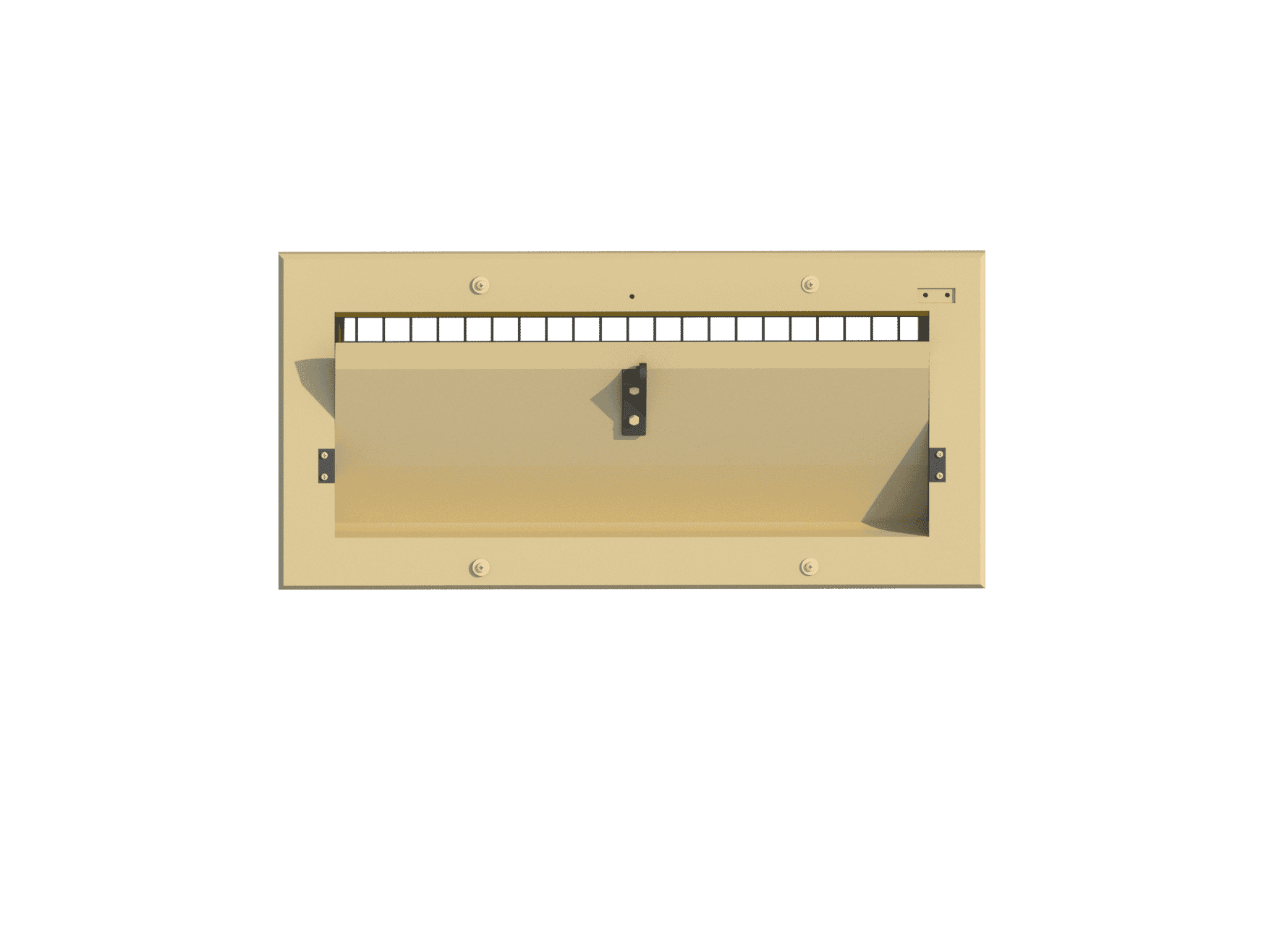

145-VFR-C Air Inlet

This air inlet valve is suitable for almost all applications. With a middle hinged inner valve the air will be divided and also flows underneath the valve when it is opened over 35%. The inlet is controlled by means of a central plastic control arm. This inlet is executed with a straight inner valve so even when it is opened for maximum ventilation air is not guided downwards to the animals. (also available in self-closing version)



Capacity in m3/hour at a static pressure of:



Model

10Pa

20Pa

40Pa

145-Series

1450

2050

2900

Product information:



Run

27 cm / 10.6 Inch

Force

1 kg / 9.8 Newton

Number / pallet

52 (1.20 x 0.80 x 2.40 m)

Weight / per inlet

1.91 kg / 4.20 Lbs

Volume / per box

26
