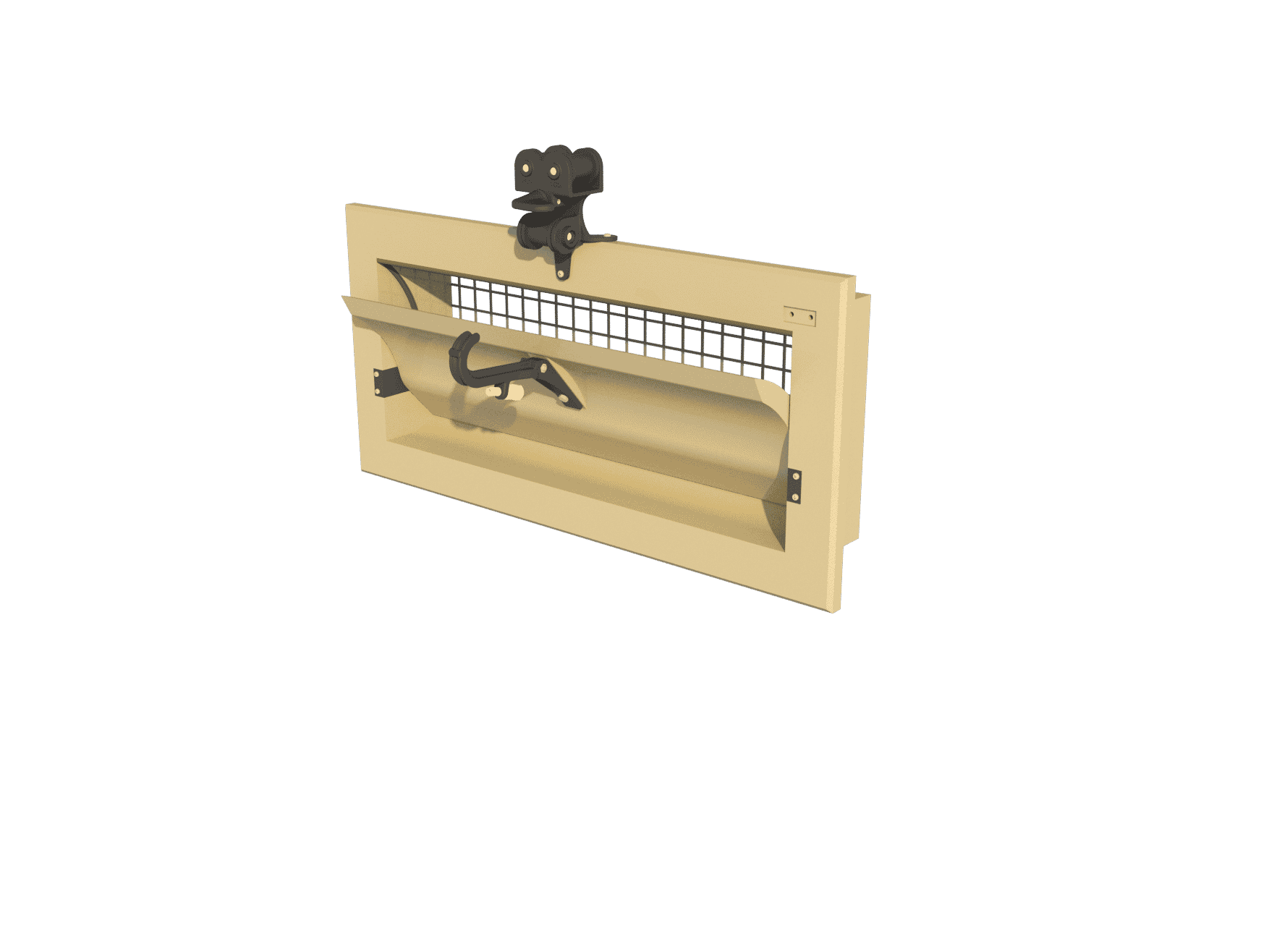

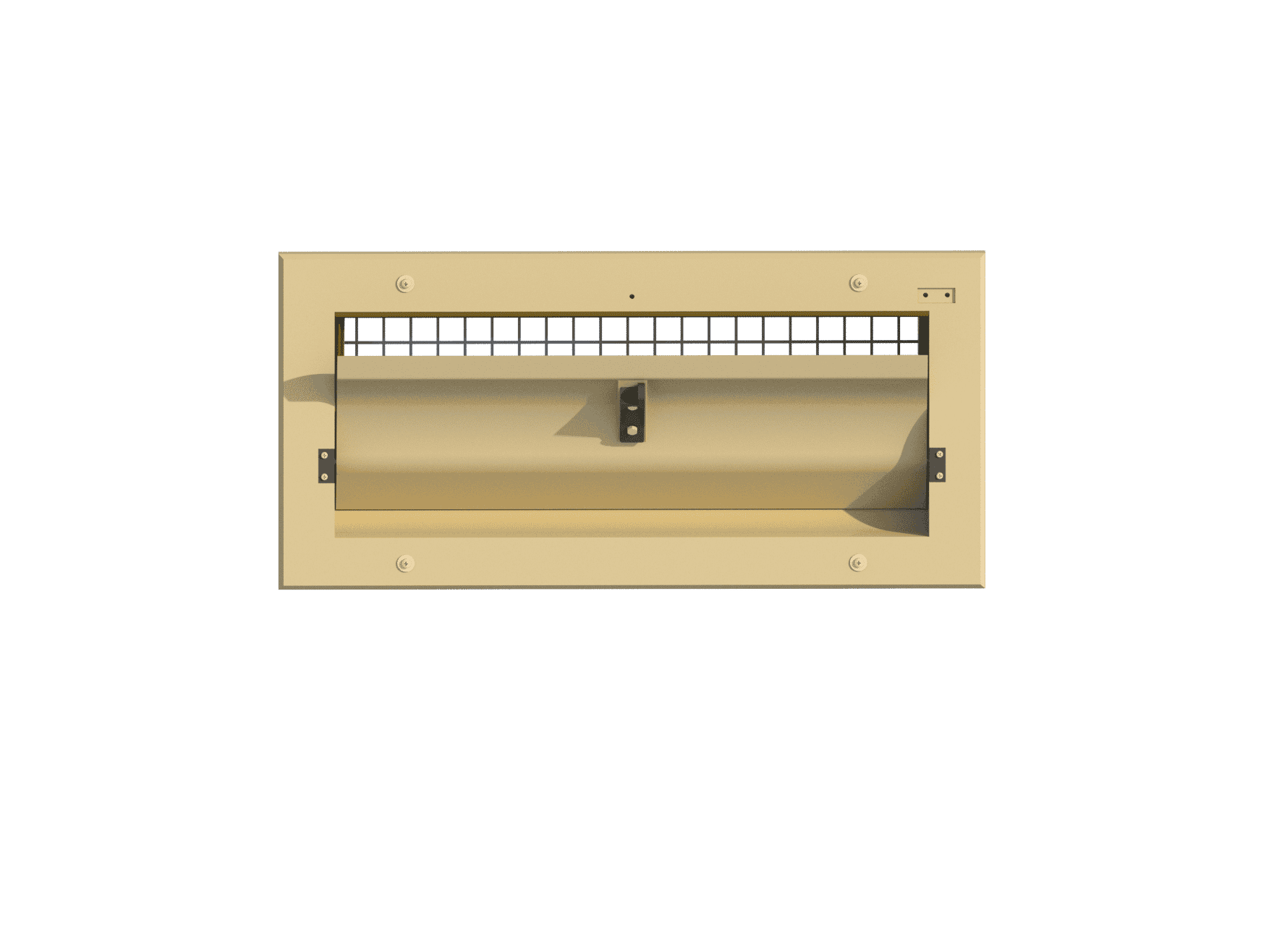

145-VFG-C Air Inlet

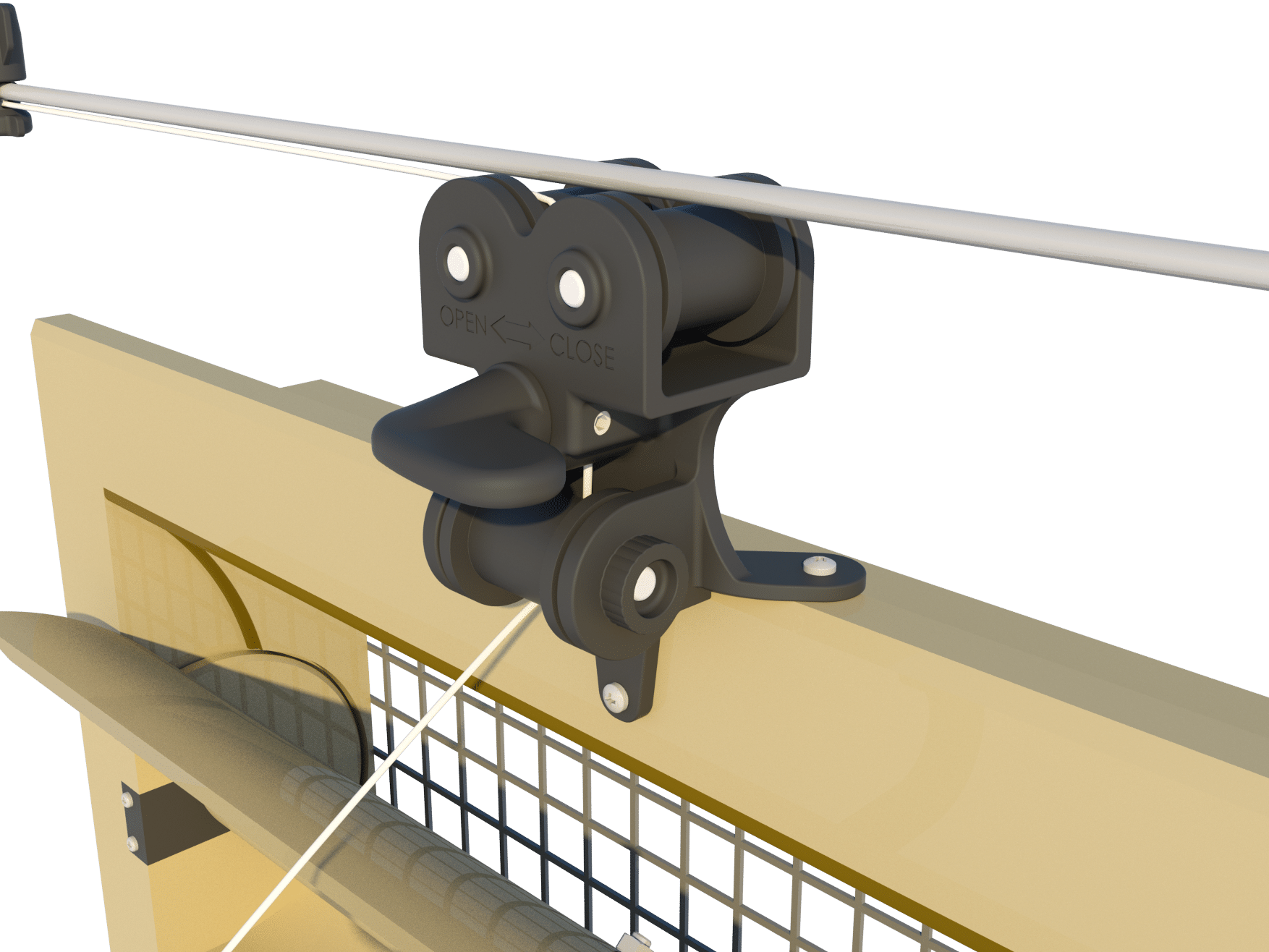

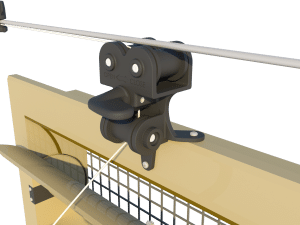

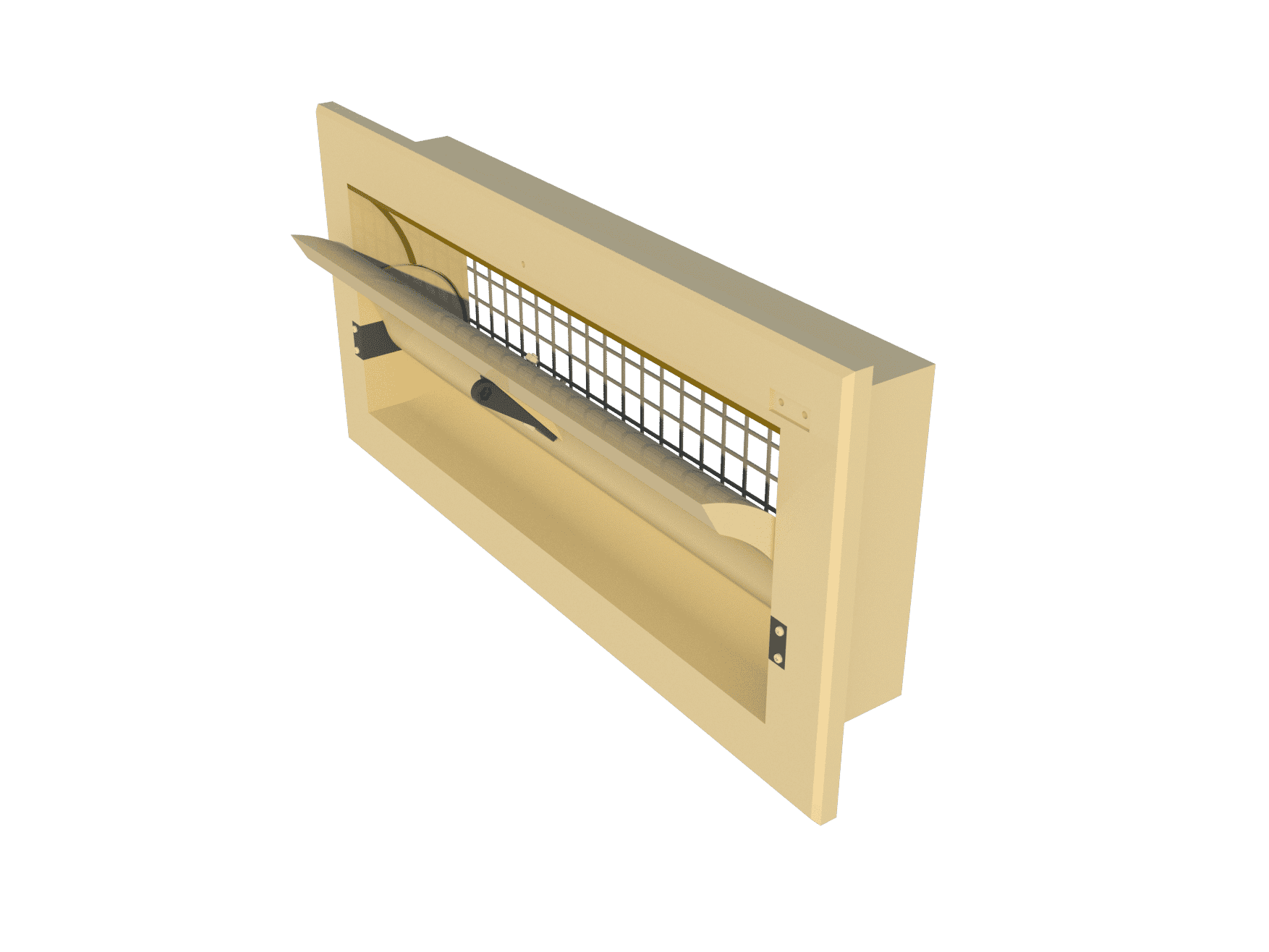

This air inlet is suitable for almost all applications. With a middle hinged inner valve the air will be divided and also flows underneath the valve when it is opened over 35%. The inlet is controlled by means of a central plastic control arm. This air inlet valve is executed with a curved inner valve so when it is opened for maximum ventilation air is also guide downwards to the animals. (also available in self-closing version)
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
---|---|---|---|
145-Series | 1450 | 2050 | 2900 |
Product information:
Run | 29 cm / 11.4 Inch |
Force | 1 kg / 9.8 Newton |
Number / pallet | 52 (1.20 x 0.80 x 2.40 m) |
Weight / per inlet | 1 kg / 9.8 Lbs |
Volume / per box | 26 |
