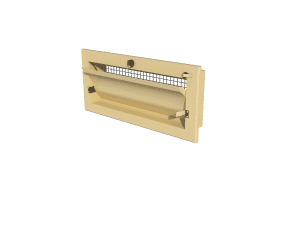

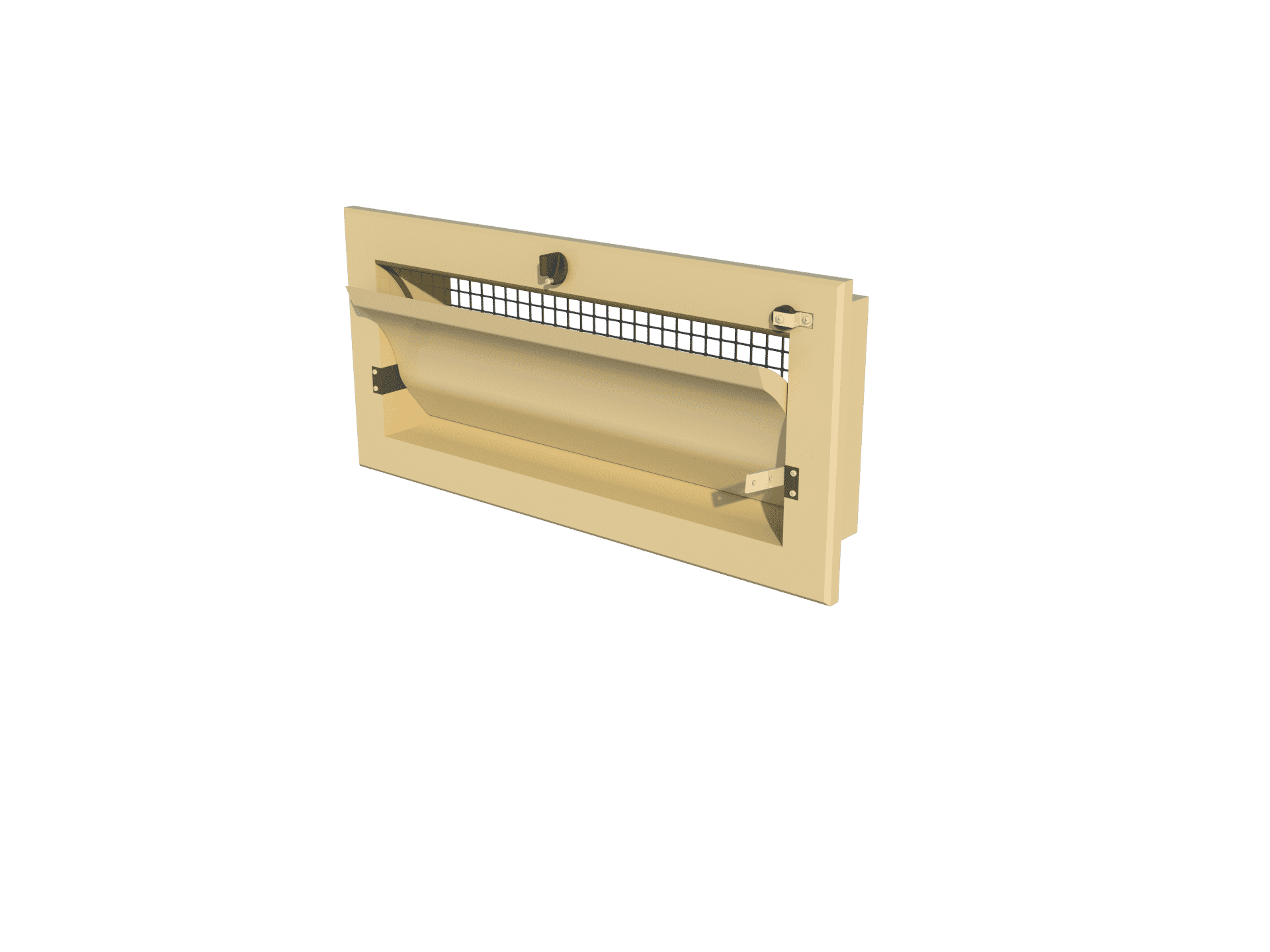

145-VFG Air Inlet

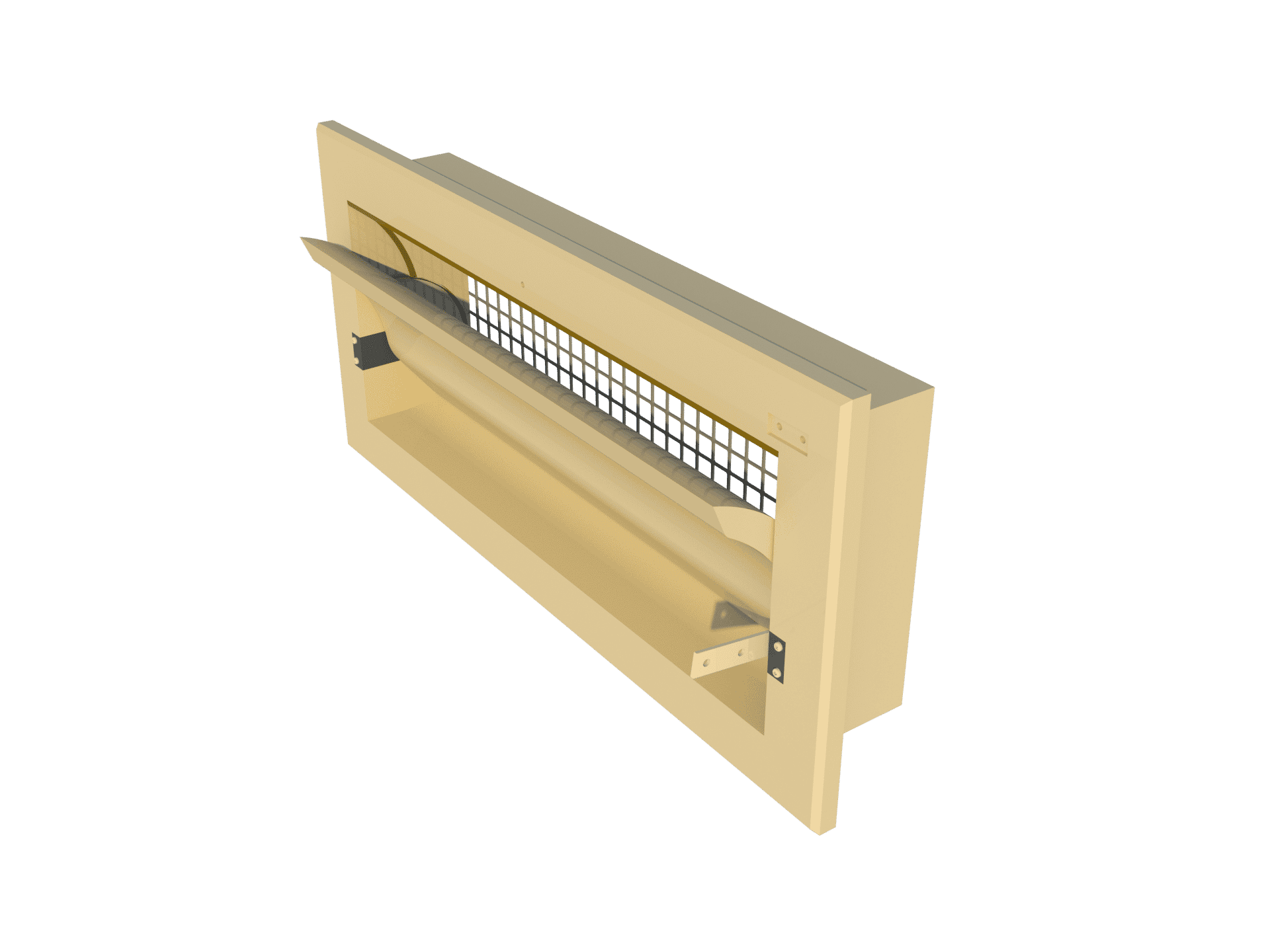

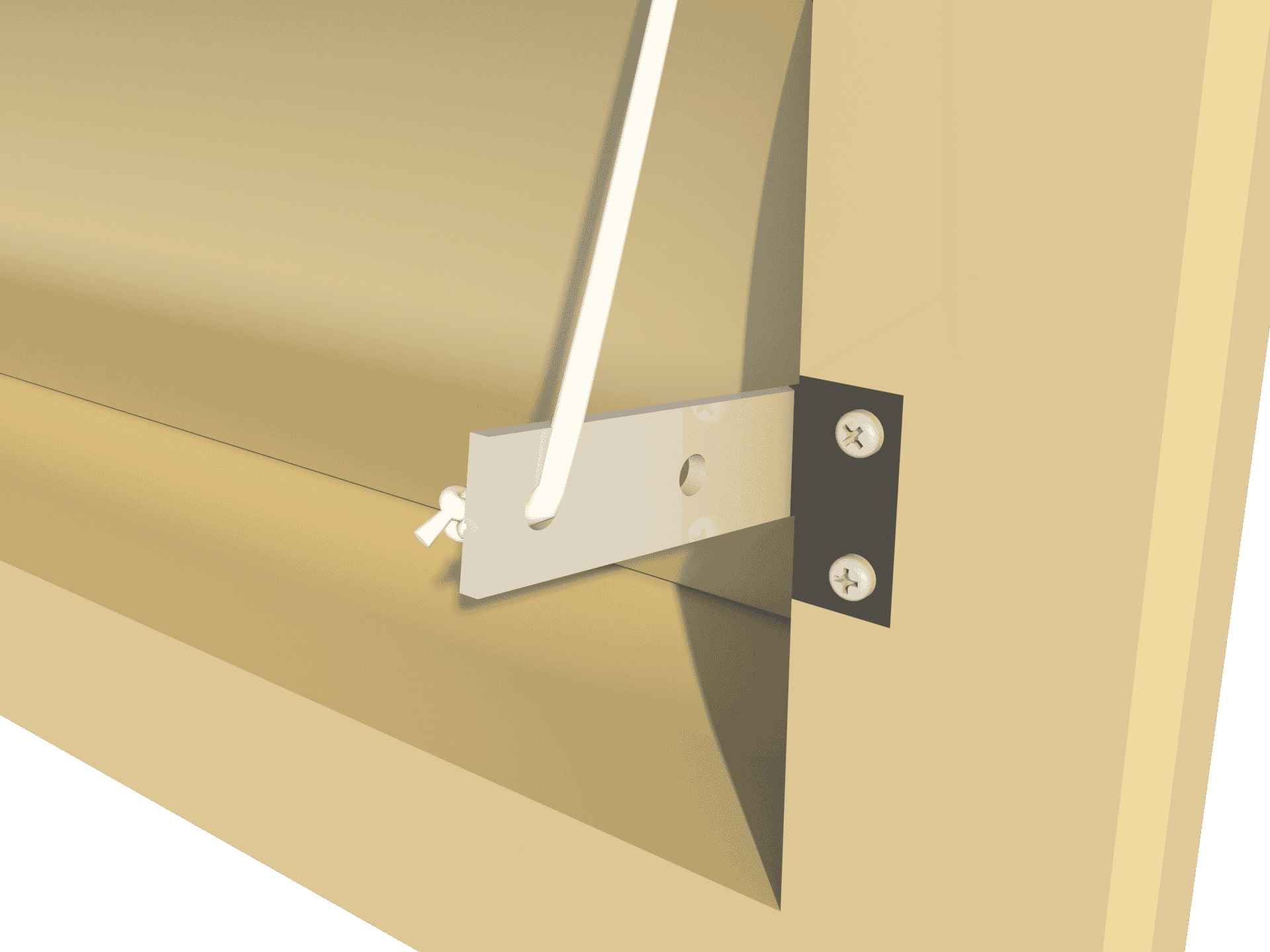

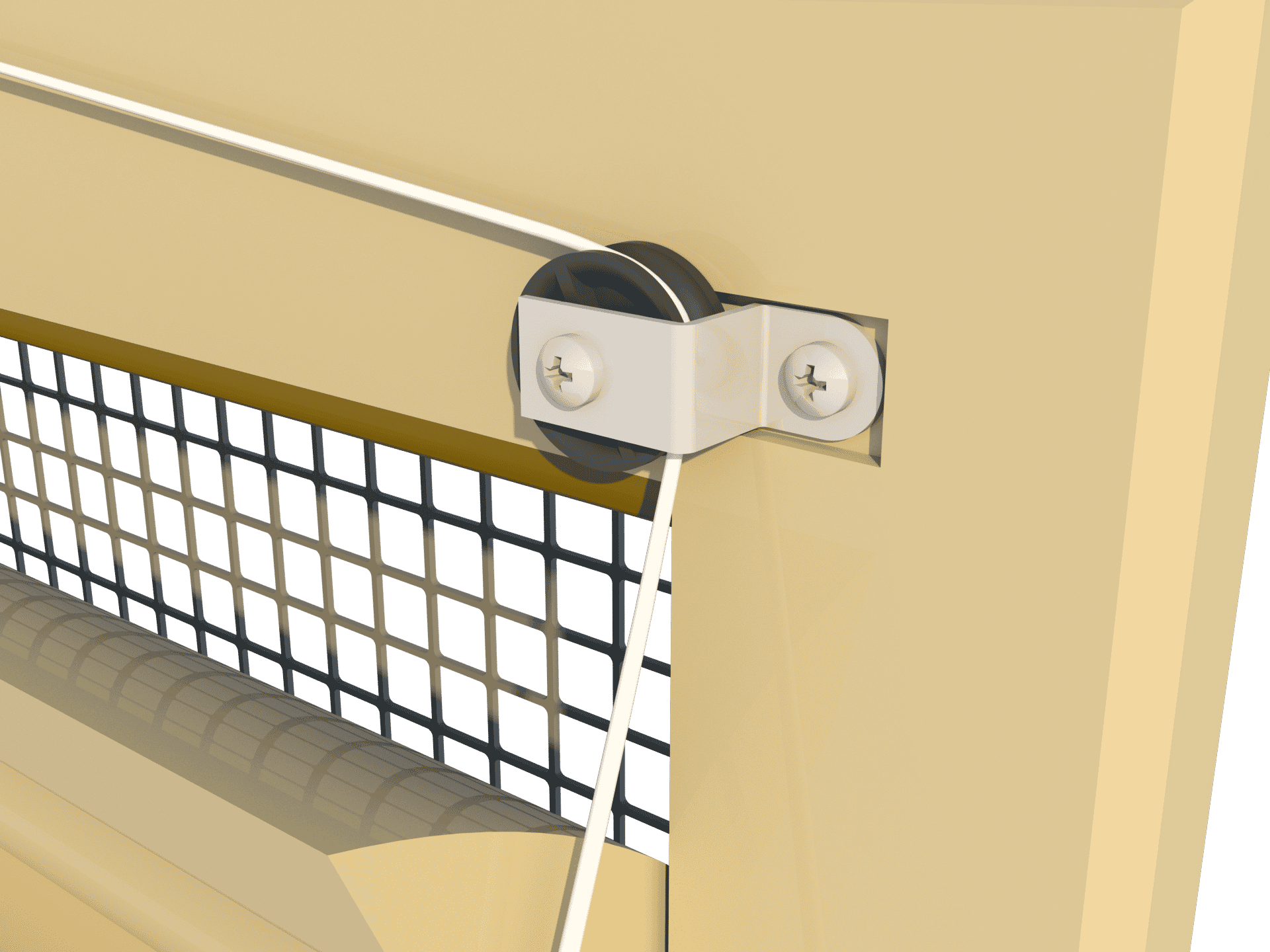

This air inlet is suitable for almost all applications. With a middle hinged inner valve the air is divided and also flows underneath the valve when it is opened over 35%. The inlet is controlled by means of a stainless steel side arm. This inlet is executed with a curved inner valve so when it is opened for maximum ventilation air is also guide downwards to the animals. (also available in self-closing version)



Capacity in m3/hour at a static pressure of:



Model

10Pa

20Pa

40Pa

145-Series

1450

2050

2900

Product information:



Run

13 cm / 5.1 Inch

Force

2 kg / 19.6 Newton

Number / pallet

52 (1.20 x 0.80 x 2.40 m)

Weight / per inlet

1.98 kg / 4.36 Lbs

Volume / per box

26
